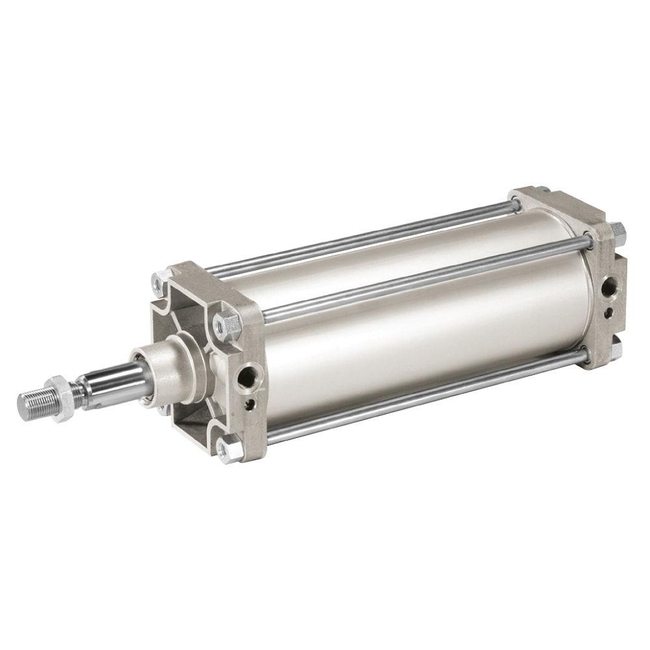

ISO Pneumatic Cylinders, Large Bore Tie Rod Design - P1D-T Large Bore Series / Parker Pneumatic - Europe

Obsolete: ISO Pneumatic Cylinders, Large Bore Tie Rod Design - P1D-T Large Bore Series / Parker Pneumatic - Europe

Brand: Parker Hannifin
Add Product to My Catalog

This product isThe P1D-T large bore in sizes Ø160, 200, 250 and 320mm is an ISO 15552 magnetic Tie-Rods cylinder for standard temperature -20 to +80°C.

This series is also available as non magnetic and as high temperature versions up to +140°C. P1D-T has corrosion resistant materials and is suitable for heavy duty applications.
Features
  • Conforms to ISO 15552 standard
  • Bores from 160 to 320 mm
  • Heavy Duty Tie-Rods Design
  • Corrosion resistant with aluminium end plates, barrel in anodized aluminium and stainless steel piston rod
  • Polyurethane seal technology
  • Adjustable air cushioning
  • Mechanical end stops reduce the noise
  • Wide range of mountings and drop-in sensors

Specifications

Brand

Approvals & Certifications

  • ATEX/ISO 15552

Body Material

  • Aluminum

Body Type

  • Tube/Tie Rod

Bore Size

  • 160 mm / 200 mm / 250 mm / 320 mm

Corrosion Resistant Option

  • Yes

Cushioning Type

  • Pneumatic Adjustable

Cylinder Action

  • Double-Acting

Cylinder Type

  • Non-Guided / through Rod

End Cap Material

  • Aluminum

Extend Stroke Thrust (N)

  • 12058 to 48255

Maximum Stroke (inch)

  • 78.7

Maximum Stroke (mm)

  • 2000

Maximum Working Pressure (bar)

  • 10

Maximum Working Pressure (psi)

  • 145

Mounting Option

  • Yes - ISO 15552

Operating Temperature (°C)

  • -20° to +80° C (Standard) / -10° to +140° C (High)

Operating Temperature (°F)

  • -4° to +176° F (Standard) / +14° to +284° F (High)

Piston Rod Material

  • Stainless Steel / Chrome-Plated Steel

Port Size

  • G3/4, G1

Position Sensing

  • Optional Bracket

Repairable

  • Yes

Retract Stroke Thrust (N)

  • 11304 to 46385

Rod End Thread Type

  • Male

General Industry – Linear Movement
  • Push Objects
  • Stop/Hold/Go
General Industry - Clamping
  • Clamp Objects
  • Fix / Hold in Position
General Industry - Holding
  • Lift, Moving,  Clamping
General Industry - Controlling
  • Change Lane, Direction
  • Change Level
Packaging – Moving
  • Push / Pull Objects
  • Sorting, Conveying
Outdoor Transport and Railway – Linear Movement
  • Moving, Clamping, Closing
