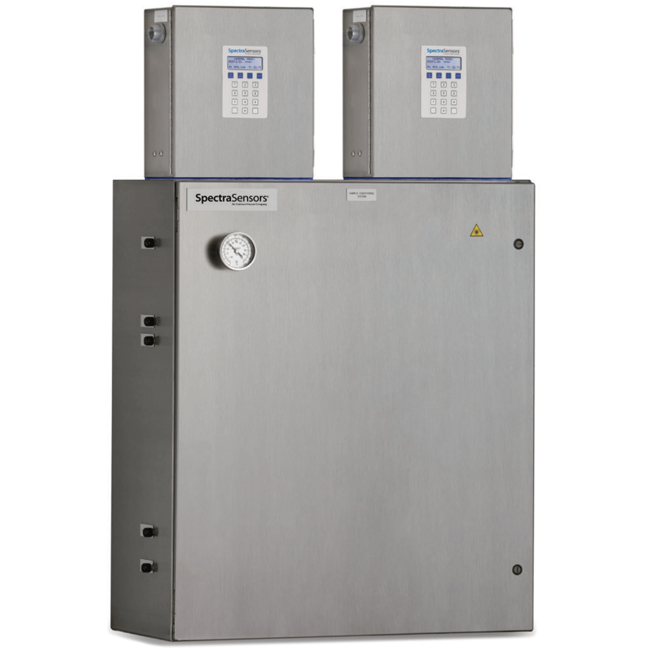

2-Pack & 3-Pack H2S, H2O, CO₂ Analyzer System
Brand: SpectraSensors, Inc
The SpectraSensors H₂S, H₂O, CO₂ 2-Pack and 3-Pack Gas Analyzer Systems retain the analytical benefits and reliability known by our existing customers.
In addition, reduced installation costs, support and complexity are achieved via a single technology for gas quality measurements.
Features- One technology, one supplier
- Complete gas quality analyzer in one small package
- Includes sample conditioning and regulation
- No complex fiber or fiber optics
- Simple installation and operation
- Fast and continuous
- Low maintenance, no light source or probe replacements, no tape and no carrier gas
- No field calibration
- Reliable in harsh enviorments
- CSA Class I, Div 2, FCC Certification
Specifications
Brand
Approvals & Certifications
- CSA Class I, Div. 2, Groups B, C, D, T3 with Heater
- EMC
- FCC
Communication
- Ethernet
- Modbus Gould RTU or Daniel RTU
- RS-232
Current
- 1.5 A, Max.
- 3 A, Max.
Display
- LCD Display
Enclosure, Body Material
- 304 Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
Input
- 120/240 Vac ± 10 %, 50/60 Hz, 314 W, Max.
- 18-24 Vdc, 3.2 A, Max.
Temperature Range
- -20° to 60° C (-4° to 140° F)
