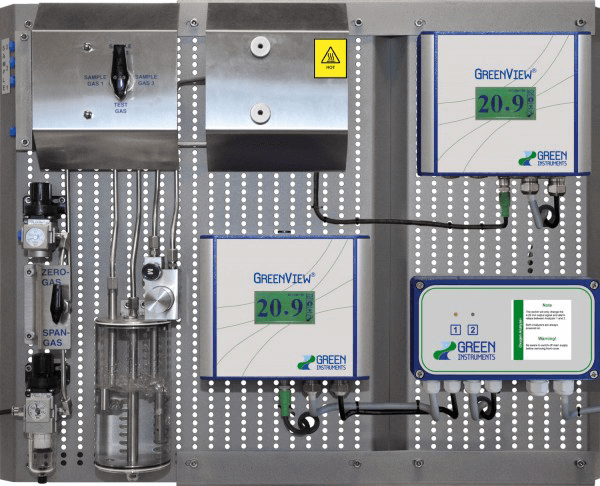

G3600/G3601 Inert Gas Oxygen Analyzing System
Brand: Green Instruments A/SThe G3600/G3601 Inert Gas Oxygen Analyzing System is a user-friendly and robust system for accurate and reliable oxygen measurements in safety critical applications. The core of the system is the G36 Oxygen Analyzer. The G36 is approved under the European Marine Equipment Directive (MED), becoming the first system to be certified under the new heading A 1/3.54 for fixed oxygen analyzers.
Since the end of July 2009, fixed oxygen analyzers have to have MED type approval on European flagged ships - this includes most EU flags plus Norway.
Specifications
Brand
Accuracy
- ± 0.5 % of the Measurement Range
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
- G36p Instead of G36a: 0° to 70° C (32° to 158° F)
- Remote Digital Display: -20° to 60° C (-4° to 140° F)
Approvals & Certifications
- BV
- CE
- DNV
- LLOYD
- MED
Approvals & Certifications
- Span Test Gas: Instrumeny Air According to ISO 8573-1.3.3.2 - Max.
BSP Connection
- 1/8" BSP Male
Display
- Interface: Touch Screen 71 x 39 mm with Trend Graph Display
- Remote Digital Display (22-250 Vac/dc with 2 Configurable Alarm Relays)
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP55
- IP67
Flow Rate
- Sample Quality: 2 to 8 L/minute
Function
- Alarm Function: O₂ High-High
- Alarm Function: O₂ Low or High
- Alarm Function: System Fail
Input
- Alaram Relays: 4 Relays, Volt Free, 5 A at 24 Vac/Vac
Load Resistance
- 600 ohms at 24 Vdc, Max.
Measuring Range
- 0 to 21 %
Mounting
- G36p Instead of G36a: Panel Mounted
Output
- Output Signal: 2 x 4-20 mA - Range Selectable, Default - A-Out1: 0 to 25 % O₂ / A-Out2 Not in Use
Power
- G36p Instead of G36a: 24 Vdc
Power Supply
- G36a: 100-230 Vac at 50/60 Hz
Pressure Range
- Sample Quality - psi: 0.7 to 14.5 (kPa: 5 to 100, bar: 0.05 to 1)
Repeatability
- ± 0.1 % of the Measurement Range
Response Time
- 90 % of Full Scale in less than 10 seconds at Sample Flow 2 L/minute
Sensor, Probe Type
- Sensor Technology: Heated Zirconia Typical Sensor
Temperature Range
- Sample Quality: 0° to 70° C (32° to 158° F)
