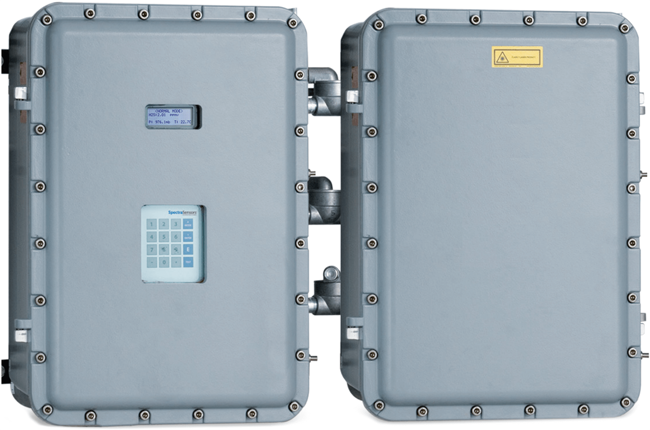

SS2100i-2 TDLAS Gas Analyzer
Brand: SpectraSensors, IncSpectraSensors SS2100i-2 Process Gas Analyzers are exceptionally reliable for measuring trace gas components using tunable diode laser absorption spectroscopy technology (TDLAS).
TDLAS is a high resolution infrared technique that enables the measurement of specific gases with precision while avoiding interferences that are common with traditional infrared analyzers.
Features- Touch keypad interface, no tools required
- Simple design, trouble-free operation
- No routine maintenance required
- Field calibration not needed
- No drift or interference from contaminants
- Reliable in harsh environments
- Available for the measurements: H2O (moisture) CO2 (carbon dioxide) H2S (hydrogen sulfide) NH3 (ammonia) C2H2 (acetylene)
- ATEX, IECEx, CNEx KC, CCOE, and EAC Certifications
Specifications
Brand
Approvals & Certifications
- CCOE
- CE
- EAC
- IECEx II 2 G Ex db IIB + H₂ T4 Gb, LCI 11.0007x
- KC
- LCIE 10-ATEX-3108x, Ex II 2 G IIB + H₂ T3 Gb
Approvals & Certifications
- CML 18JPN 1096
- CNEx 14.3397
- KTL15 KB4BO-0083
Communication
- Ethernet
- Protocol: Modbus Gould RTU or Daniel RTU or ASCII
- RS-485 Half-Duplex
Display
- LCD Display
Enclosure, Body Material
- Electronics: Copper-Free Aluminum with Weather Resistant Polyurethane Powder Coating
Environmental Protection
- IP66
Power
- 120/240 Vac ± 10 %, 50/60 Hz, ~300 W, Max.
Temperature Range
- -10° to 60° C (14° to 140° F) Optional
- -20° to 50° C (-4° to 122° F) Standard
