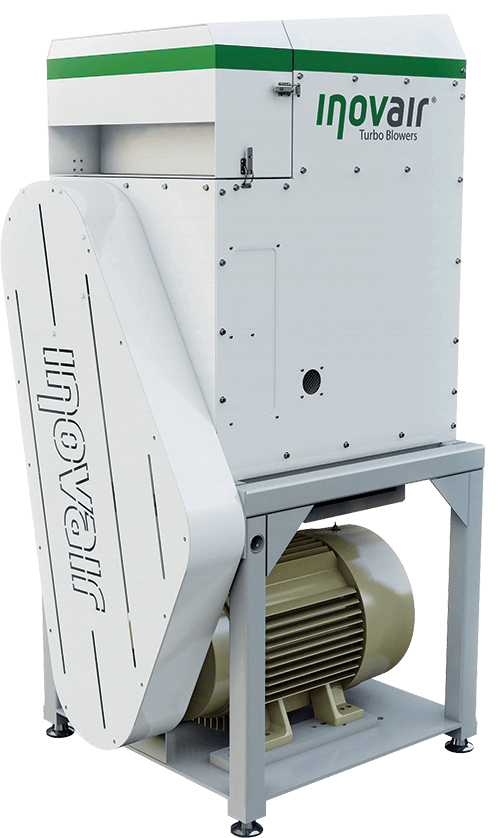

Inovair IO Series

Brand: Inovair

The Inovair IO Series is the most compact, economical turbo blower on the market.

The vertical design places the blower directly above the motor and results in an extremely compact footprint of 35in x 41in.

This design, combined with our integrally geared compressor, TEFC induction motors and other standard components, allows us to produce a reliable, cost-effective Turbo Blower for wastewater applications.

Combine these design features with the IO Series’ proven 10-35% energy savings, and you have a unit that provides a high ROI and rapid payback.

This rugged blower package also provides the long life and high pressure capability that is typical of integrally geared turbo designs.

The Inovair IO Series turbo blowers deliver the lowest cost per cfm and meets a wide range of airflow demands.

Inovair turbo blowers are the ideal solution for bringing efficiency to lower HP applications.

With proven durability, best in class efficiency, and advanced airflow controls, the Inovair IO Series blower package can improve operational performance while also significantly reducing operating costs.
Features
  • The most economical turbo blower on the market
  • Low cost investment with quick payback
  • High Efficiency (10-35% energy savings over PD blowers)
  • Intelligent air flow management
  • Oil-free air, sanitary cabinet design
  • Low discharge air temperatures
  • Engineered and built in the USA
  • Standard TEFC induction motors
  • Bypass valve silencer (Optional)
  • Cabinet filter silencer (Optional)
  • 10-35% energy savings
  • Durable 2200 Inovair compressor capable of up to 1700 scfm
  • Allen Bradley® PLC for intelligent control
  • Industry-standard VFDs and TEFC motors
  • Proportional bypass relief valve
  • Touchscreen interface
  • Automatic belt tensioner
  • Dual high capacity inlet filters with silencing
  • Ethernet communication enabled
  • Annual oil changes at 24/7 operation

Specifications

Brand

Flow Capacity

  • 300-1700 scfm

Design Pressure

  • 4-22 psig

Turndown Ratio

  • Up to 2:1

Motor Power

  • 25-100 HP

Drive Standard

  • VFD

Input Power

  • 240-480 V, 575 V 60 Hz

Impeller

  • 5-axis machined 7075-T6 Aluminum

Control System

  • Integrated Touchscreen PLC
