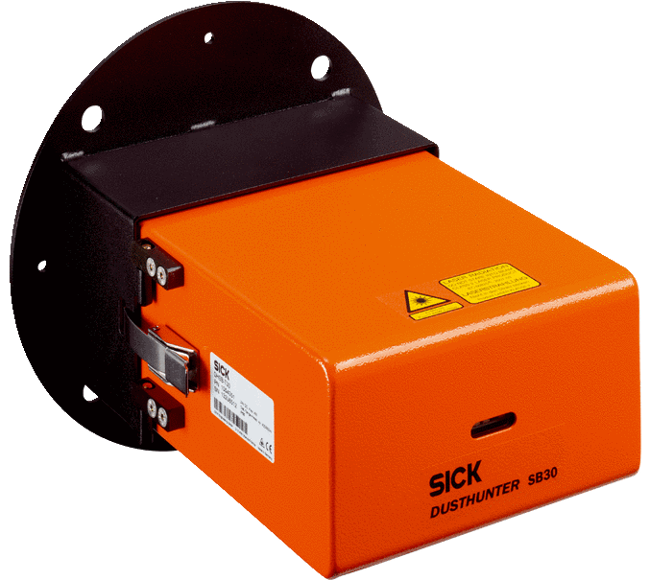

DUSTHUNTER SB30 Scattered Light Dust Measuring Device
Brand: Sick AGThe DUSTHUNTER SB30 is a measuring device, designed to detect very low to moderate dust concentrations, such as in hot or volatile gases.
Measurement is based on the tried-and-tested measurement principle of backward light scattering.
Installation is easy and is only carried out on one side of the channel.
Two different penetration depths are possible for adapting the measuring device to various channel diameters.
Features- Easy installation, commissioning, and operation
- Tried-and-tested measurement, not dependent on gas velocity, humidity, or particle load
- Cost-effective thanks to easy mounting on just one side; no alignment necessary
- Very low-maintenance thanks to self-monitoring
- Demand-controlled maintenance notifications
Specifications
Brand
Certifications & Approvals
- CE
Measuring Range
- Scattered Light Intensity: 0 to 7.5 SI / 0 to 3,000 SI
Response Time
- 1 to 600 s
Accuracy
- ± 2 % of Measuring Range Full Scale
Repeatability
- Zero Point: 0.1 %
Process Temperature
- -40° to 600° C
Process Pressure
- -50 to 30 hPa
Ambient Temperature
- -40° to 60° C
Enclosure Rating
- IP66
- IP54
Power Supply
- 24 Vdc
- 90-250 Vac, 47-63 Hz
Communication
- Modbus
- PROFIBUS DP
- Eternet
- RS-485
