Add the PLR Robot Guidance System to your store or catalog
Book Your Demo and See How
or create your store

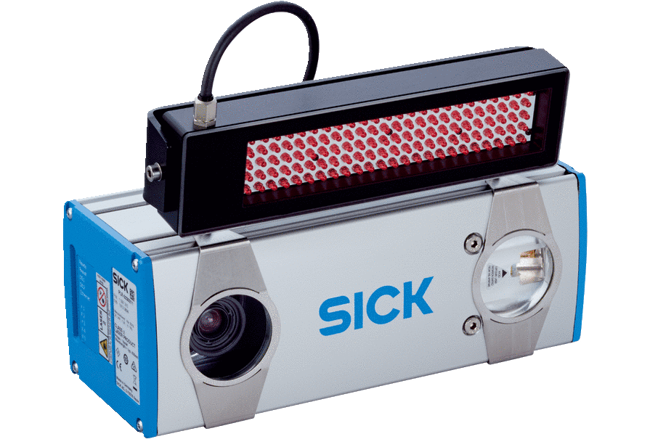

Robot Guidance Systems, PLR.png

PLR Robot Guidance System

Brand: Sick AG
Add Product to My Catalog

PLR is a sensor system designed for robotic handling of parts in carriers. It is a stand-alone device that comes complete with everything needed for easy setup, simple integration with the robot, and swift maintenance of the system in operation.

The system is operated via an integrated web server and can be set up in no time at all. It combines 2D and 3D vision technology to provide a unique solution that can be used whenever reliable material handling is essential, even under varying conditions.

PLR is factory-calibrated with preloaded software, meaning it is ready to use right out of the box. Installation and configuration of the device can be accomplished in only a matter of minutes. Now PLR is ready for operation.

At a glance
  • Precise and rapid part localization
  • Combined 2D and 3D measurement
  • Robot gripper correction calculation
  • Web-server-based user interface
  • Tools for easy integration with the robot
  • Combination of multiple devices possible
Features
  • PLR negates the need for precision racks or manual parts handling
  • Cost-effective, stand-alone device connected directly to the robot
  • The unique combination of 2D and 3D imaging techniques provides the reliability and flexibility needed for problem-free material handling operation
  • The functions for robot alignment and gripper position correction make it easy for the integrator to work with PLR
  • Web-server-based UI simplifies configuration and maintenance work
  • A device installed in production can be replaced in less than 15 minutes
  • Combining results from multiple devices allows even parts without defined features to be located

1 - 4 of 4 Part Numbers
1097315
1097315
  • Measuring Range - 265 to 515 mm, Recommended: 365 mm
  • Type - PLR3200-01
1099062
1099062
  • Measuring Range - 630 to 880 mm, Recommended: 730 mm
  • Type - PLR3200-02
1109801
1109801
  • Measuring Range - 265 to 515 mm, Recommended: 365 mm
  • Type - PLR3200-01L
1109802
1109802
  • Measuring Range - 630 to 880 mm, Recommended: 730 mm
  • Type - PLR3200-02L
1 - 4 of 4 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE

Example Volume of View (L × W × H)

  • 260 mm x 260 mm (Typical)

Part Localization Time

  • < 600 ms

Localization Accuracy

  • ± 0.5 mm, ± 0.1°
  • ± 0.8 mm, ± 0.2°

Enclosure Rating

  • IP65

Measuring Range

  • 265 to 880 mm

  • Car body component manufacturing
  • Car body assembly operations
  • Handling of chassis beams
  • Appliance manufacturing

Documentation

Data Sheets

Product Manuals

Brochure
