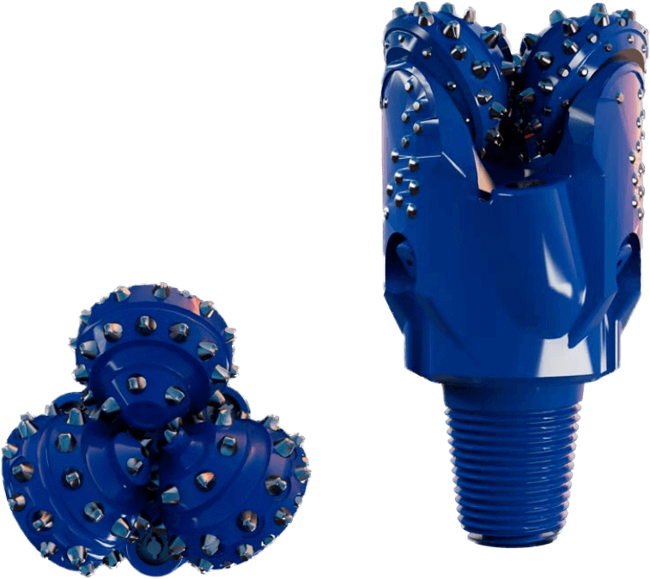

HDD Roller Cone Drill Bits
Brand: Kingdream Public Limited CompanyNot because we are sleeping on the job, quite the opposite! HMA have sought to develop a range of roller cone bits that are designed specifically for the HDD market.
Working closely with Kingdream’s engineers, the product that has been developed integrates design features used in the oil and gas industry to ensure consistent and reliable performance in HDD.
The design of each bit has been fine tuned to cope with unique challenges that are faced in the HDD industry, and engineered to increase your daily productivity.
Features- Specifically Designed Cutter Layout
- Proprietary Metallurgy
- Extra Gauge Protection
- Replaceable Tungsten Carbide Jets
- Pressure Compensation System
1 - 12 of 20 Part Numbers
KDS-0434-537-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 4-3/4"
- Thread - 2-3/8” API Regular
- IADC Codes - 537
- Seal Type - Polymer
KDS-0434-637-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 4-3/4"
- Thread - 2-3/8” API Regular
- IADC Codes - 637
- Seal Type - Polymer
KDS-0512-537-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 5-1/2"
- IADC Codes - 537
- Seal Type - Polymer
KDS-0512-637-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 5-1/2"
- IADC Codes - 637
- Seal Type - Polymer
KDS-0612-537-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 6-1/2"
- IADC Codes - 537
- Seal Type - Polymer
KDS-0612-637-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 6-1/2"
- IADC Codes - 637
- Seal Type - Polymer
KDS-0634-537-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 6-3/4"
- IADC Codes - 537
- Seal Type - Polymer
KDS-0634-637-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 6-3/4"
- IADC Codes - 637
- Seal Type - Polymer
KDS-0978-537-M
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 9-7/8"
- IADC Codes - 537
- Seal Type - Metal-faced
KDS-0978-537-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 9-7/8"
- IADC Codes - 537
- Seal Type - Polymer
KDS-0978-637-M
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 9-7/8"
- IADC Codes - 637
- Seal Type - Metal-faced
KDS-0978-637-P
- Supplier - Kingdream
- Product Line - Special
- Bit Size - 9-7/8"
- IADC Codes - 637
- Seal Type - Polymer
1 - 12 of 20 Part Numbers
Specifications
Supplier
- Kingdream
Product Line
- Special
Bit Size
- 4-3/4"
- 5-1/2"
- 6-1/2"
- 6-3/4"
- 9-7/8"
- 12-1/4"
- 17-1/2"
Thread
- 2-3/8" API Regular
- 2-7/8" API Regular
- 3-1/2" API Regular
- 6-5/8" API Regular
- 7-5/8" API Regular
IADC Codes
- 537
- 637
Seal Type
- Available with Polymer Seal
- Available with Both Polymer Seal and Metal-faced Seal
