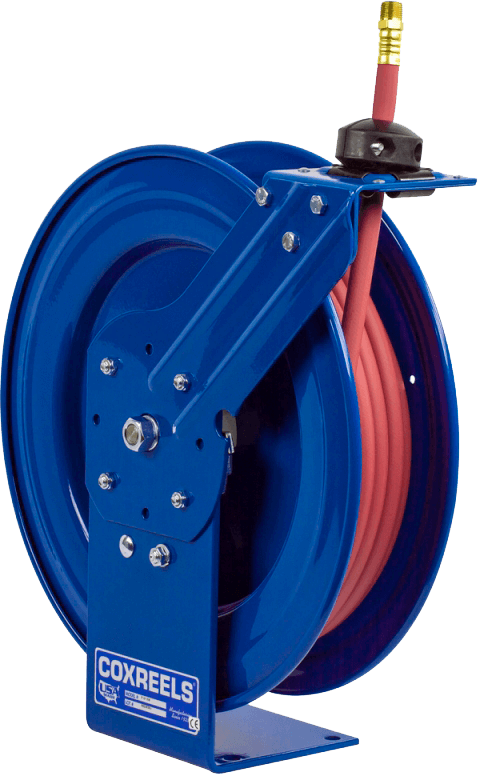

Spring Driven Reels | P-Series
Brand: COXREELS®COXREELS® P Series “Performance” spring driven hose reels have a long history of dependability and trouble free performance.
Their compact space-saving size and heavy duty construction make them highly versatile and virtually indestructible.
Time-tested proven components, superior design and craftsmanship have contributed to it’s worldwide reputation as the most trusted hose reel.
Swivel
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
- Swivel Seals: NITRILE
Design & Structure
- Sturdy single pedestal reel with space saving design facilitates workplace organization.
- Guide arm adjusts to wall, floor, vehicle & overhead positions.
- Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability.
- 1" solid steel axle and lubricated precision bearings for smooth rotation.
Retract
- Enclosed factory tuned and matched cartridge-style spring motor.
- Non - corrosive stainless steel spring, pawl and zinc plated ratchet.
- Multi - position lock ratchet mechanism secures hose at desired length.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
- Swivel - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- Multi - Position Guide Arm - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Other Features Include - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
Brand
PSI Maximum
- 300
- 5000
- 3000
Inside Diameter
- 1/4"
- 3/8"
- 1/2"
Hose Length
- 20 ft
- 25 ft
- 30 ft
- 35 ft
- 40 ft
- 50 ft
Optional Hose
- Yes
EZ - Coil
- Optional - Select Models
