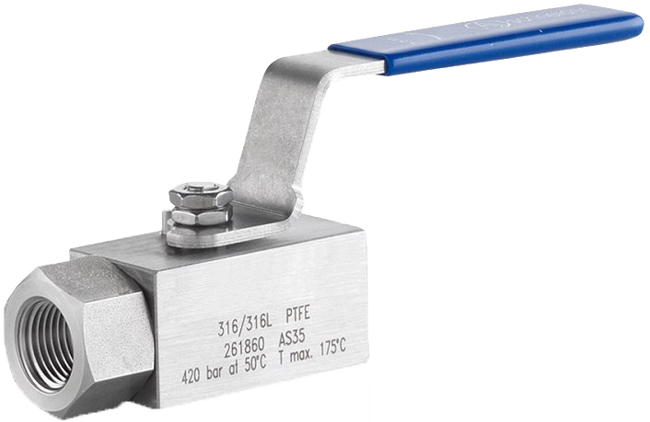

V02 Series High Pressure Ball Valve
Brand: Ashcroft IncThe Ashcroft® V02 high pressure ball valve provides systems with a quick, safety shutoff to isolate the process from the instrument assembly during shutdown and maintenance periods.
Features- Floating ball design provides bi-directional isolation
- PTFE Packing
- Anti-blowout stem design
- Supplied with wetted parts according to NACE MR0175/MR0103
- 316L stainless steel construction
- 90° turn opens or closes valve quickly
- 10mm bore hole reduces clogging
Specifications
Brand
Ball Material
- 316 Stainless Steel
- 316L Stainless Steel
Spring Material
- Antistatic Spring: 316 Stainless Steel
Seat / Seal Material
- Ball Seat, Body & Stem Seal: PTFE
Stem Material
- 316 Stainless Steel
Packing Material
- PTFE
Temperature Range
- Maximum
Pressure Range
- Maximum
Enclosure, Body Material
- 316 Stainless Steel
Gland Material
- 316 Stainless Steel
Name Plate, Tag Material
- Stainless Steel
NACE & NIST
- NACE MR-0175, MR-0103
Handle Assembly Material
- 316 Stainless Steel
- Handle Grip: Vinyl
NPT Connection
- 1/2" NPT Female
- 1/2" NPT Male
Approvals & Certifications
- 3.1 Certificate Materials Traceability Report EN 10204
- Hydrostatic Internal Testing
Nut & Bolt Material
- Hex Nut: 316 Stainless Steel
- Cement Plants
- Chemical Industry
- Conventional Power Plants
- Flue Gas Desulfurization Plants
- Midstream: Transport, Storage & Natural Gas Compressors
- Nuclear Power Plants
- Oil & Gas Applications
- Power Plants
- Refineries & Petrochemical Industries
- Seawater Desalination Plants
- Steel Mills
- Upstream: Onshore/Offshore Production
- Waste Incineration Plants
