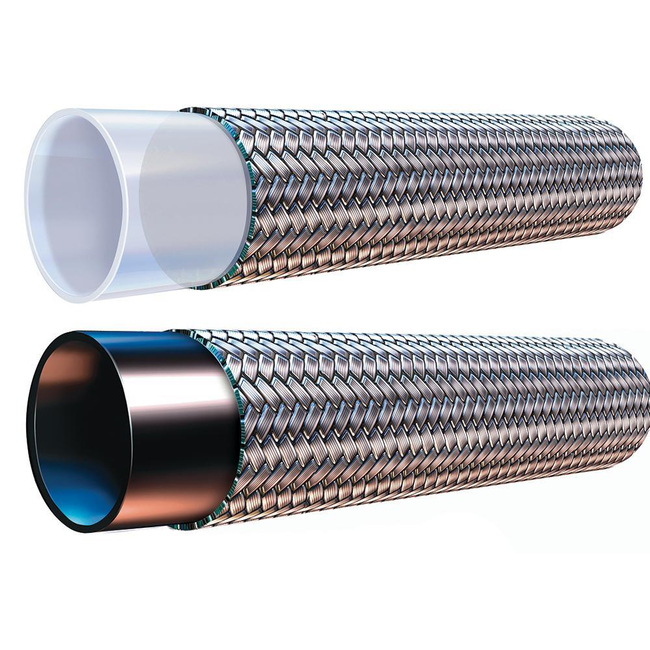

Smooth Bore Stainless Steel Braided PTFE Hose - STW/STB “True-Bore”
Brand: Parker HannifinParker's STW/STB “True-Bore” Hose differs from other smoothbore PTFE hoses because these hoses have a larger inside diameter to speed up the flow of the media through the tube.
Parker's STW/STB “True-Bore” Hose differs from other smoothbore PTFE hoses because these hoses have a larger inside diameter to speed up the flow of the media through the tube.
For example, an S30-6 PTFE hose has a nominal inside diameter of 5/16 whereas STW-6 “True Bore” hose has a nominal inside diameter of 3/8.
The increased I.D. speeds up the flow of the media traveling through the tube and, in some cases, allows the hose to carry up to 15% more flow.
STW/STB “True-Bore” Smooth Bore Stainless Steel Braided PTFE Hose maintains excellent chemical compatibility, resists moisture and is capable of withstanding high temperatures up to 450°F/260°C.
It exhibits high performance in applications that involve fluid handling, chemical transfer, food and beverage, paint, pharmaceutical and cosmetics.
Features- Increased I.D. speeds up the flow of the media traveling through the tube and, in some cases, allows the hose to carry up to 15% more flow
- Handles temperatures up to 450°F/260°C
- Excellent chemical compatibility
- Resists moisture
- Low friction minimizes pressure drops and deposits
- Compliance:
- FDA 21 CFR 177.1550 (core tube)
- USP Class VI (core tube)
Specifications
Brand
Color
- Silver
Compatible Fittings
- PAGE
Dash Number
- -3 to -24
Hose I.D. (inch)
- 1/4", 3/8", 1/2", 3/4", 1, 1-1/4", 1-1/2"
Hose I.D. (mm)
- 6, 10, 13, 19, 25, 32, 38
Hose I.D. (Size)
- -4, -6, -8, -12, -16, -20, -24
Hose O.D. (inch)
- 0.37 to 1.73
Hose O.D. (mm)
- 9 - 44
Hose Style
- Natural & Static Dissipative
Hose Type
- PTFE Hose, Smoothbore, Truebore
Industry Standards
- FDA 21 CFR 177.1550, USP Class VI, ISO 10993 - Sec 5, 6, 10, 11
Maximum Working Pressure (bar)
- 62 - 207
Maximum Working Pressure (Mpa)
- 6.2 - 20.7
Maximum Working Pressure (psi)
- 900 - 3,000
Maximum Working Temperature (°C)
- 232° C
Maximum Working Temperature (°F)
- 450° F
Media
- Various
Minimum Bend Radius (inch)
- 3 - 15
Minimum Bend Radius (mm)
- 76 - 381
Minimum Working Temperature (°C)
- -73° C
Minimum Working Temperature (°F)
- -100° F
Vacuum Rating (inches of Hg)
- 28
Vacuum Rating (mm of Hg)
- 711.2
Weight (kg/m)
- 0.13 - 1.18
Weight (Lbs/Ft)
- 0.08 - 0.79
- Transfer of Fluids and Harsh Chemicals, Sanitizers or Pesticides
- Chemical Transfer
- Paint
- Pharma Dispensers
- Cosmetics
- Markets:
- Fluid Handling
- Industrial
- Pharmaceutical
- Food & Beverage
