Wise Differential Pressure Switch, P640 Series

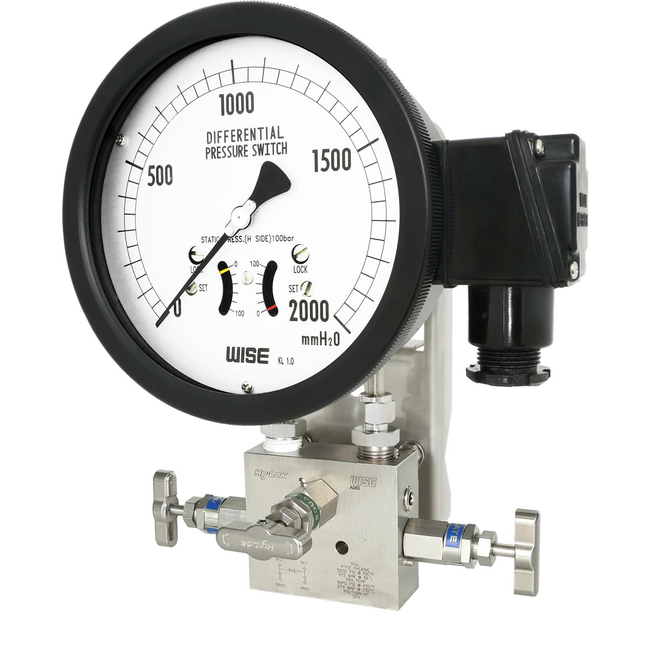

Indicating Type Differential Pressure Switch with Bellows Element P640 Series

Brand: Wise Control Inc
Add Product to My Catalog

The P640 series are designed to measure differential pressure from 25 kPa to 2.0 MPa at static pressure 10 MPa and have electrical contact.

A set of two stainless steel bellows mounted on a force balance allows direct reading of the actual differential pressure.

Specifications

Brand

Accuracy

  • ± 1.5 % of Full Scale
  • ± 1.0 % of Full Scale

Case & Cover

  • ALDC12.1, Black Painted Screwed Typical

Conduit Connection

  • 3/4" PF (°F)

Contact

  • DC 250 V 0.2 A / 125 V 0.4 A / 30 V 4 A
  • Dielectric Strength: AC 500 V/MIN
  • Contact Rating: AC 250 V 3 A / 125 V 5 A
  • Typical: Micro Contact, One & Two SPDT

Degree of Protection

  • EN 60529 / IEC 529 / IP65

Dial

  • White Aluminum with Black Graduations

Element

  • 316L Stainless Steel, Monel & Hastelloy C
  • Bellows

Filling Liquid for Differential Cell

  • Silicone Oil

Nominal Diameter

  • 150 mm

Options

  • 3-Way Manifold Valve (316 Stainless Steel, Monel)
  • 5-Way Manifold Valve (316 Stainless Steel, Monel)
  • Mounting Bracket with 316 Stainless Steel for 2" Pipe
  • Remote Seal - Not Available with less than 40 kPa of Differential Pressure Range

Pointer

  • Black Painted Aluminum Alloy (Zero Adjustable)

Pressure Connection

  • 316L Stainless Steel, Monel & Hastelloy C

Process Connection

  • 1/2" NPT Female at 3-Way & 5-Way Manifold Valve
  • 1/4" NPT Female

Scale Range (MPa, KPa, bar, Mbar)

  • 0 to 0.4 MPa to 0 to 2.0 MPa (P642 Model)
  • 0 ~ 25 kPa to 0 ~ 0.25 MPa (P641 Model)

Standard Accessories

  • Mounting Bracket for 2" Pipe Mounting with Silver Gray Finished Steel

Static Pressure

  • Maximum

Temperature Effect

  • ± 0.5 % Per 10° C of Full Scale
  • Accuracy at Temperature Above & Below the Reference Temperature (20° C) Will be Effected by Approximately

Window Material

  • Safety Glass

Working Temperature

  • Ambient: -20° to 65° C
  • Fluid: Max.

Documentation

Data Sheets
