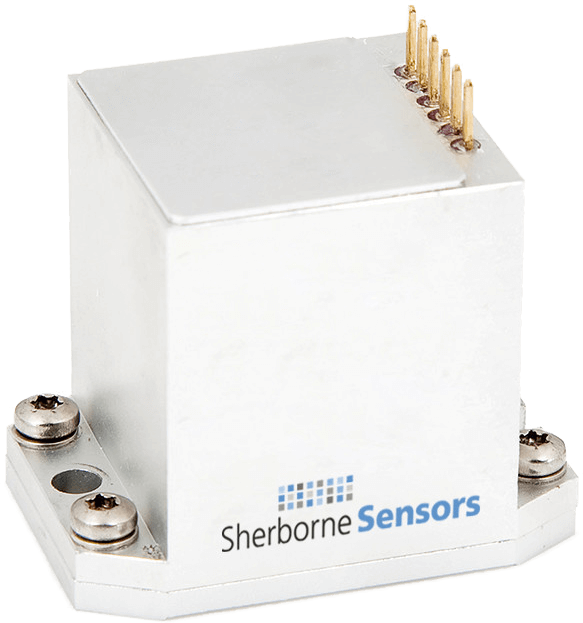

A215 Series Accelerometer

The Sherborne Sensors’ A200 range of Servo Accelerometers measure vector acceleration with high accuracy using a closed loop force balance torquer mechanism.

A pendulous mass develops a torque proportional to the product of its mass unbalance and the applied acceleration.

The movement of the mass is detected by a position sensor whose output signal is connected to a servo amplifier.

The resulting current is fed into the torque motor which then develops a torque exactly equal to, but directly opposed to the initial torque from the pendulous mass.

The mass then stops moving, assuming a position minutely differing from it’s initial zero ‘g’ position.

Simultaneously, the current to the torque motor is fed through a stable resistor to provide an output voltage proportional to the applied acceleration.

The system is electronically damped by means of a phase advancing network within the integrated servo amplifier.

 By adjusting the parameters of the servo amplifier and related electronic networks, the operating characteristics of a servo accelerometer can be optimised to suit a particular application.
