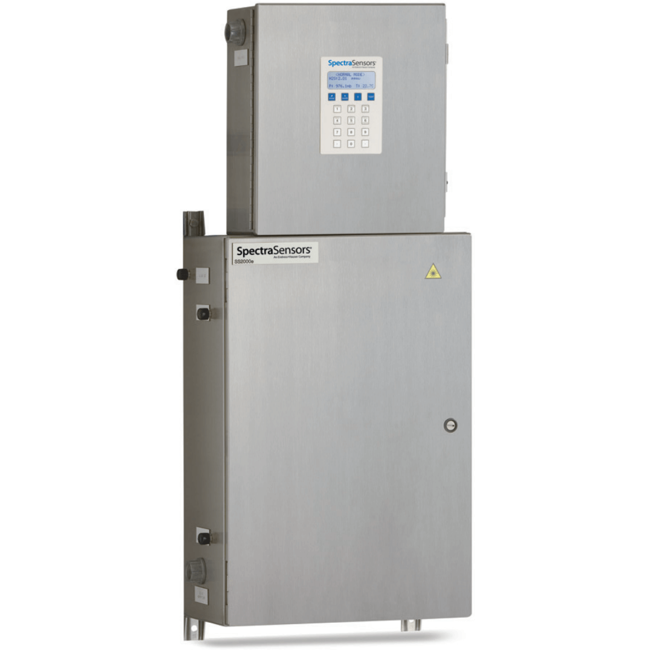

SS500e/SS2000e Single Channel H2O or CO₂ Gas Analyzer
Brand: SpectraSensors, IncSpectraSensors SS500e/SS2000e Single Channel Analyzer is extremely reliable and tailored for the needs of the natural gas industry.
The sensor measures gas using a patented Tunable Diode Laser Absorption Spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream.
Features- Virtually maintenance free
- No interference from glycol, methanol or amine contaminants (vapor phase)
- Accurate, real-time measurements
- No wet-up or dry-down delays
- Reliable in harsh environments
- Short term payback; no consumables
- NIST-traceable calibration
- NEMA 4X enclosure
- Analog and digital Outputs for remote monitoring
- Heated and Unheated Stainless Steel Sample Conditioning Enclosures with NEMA-4X System Rating
- Optional RS485 and Ethernet Communications
- AMS100 Analyzer Management Software
- CSA Certification
Specifications
Brand
Approvals & Certifications
- CSA Class I, Div. 2, Groups B, C, D, T3C (T3 with Heaters)
Communication
- Ethernet
- Modbus Gould RTU or Daniel RTU or ASCII
- RS-232C
- RS-485
Current
- 1 A, Max.
- 1.6 A, Max.
- 2 A, Max.
Display
- LCD Display
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
Input
- 100-240 Vac, 50/60 Hz
- 18-24 Vdc Optional
Materials of Construction
- Sample Cell: 316L Series Polished Stainless Steel - Standard
NACE & NIST
- NIST
Temperature Range
- -10° to 60° C (14° to 140° F) Optional
- -20° to 50° C (-4° to 122° F) Standard
