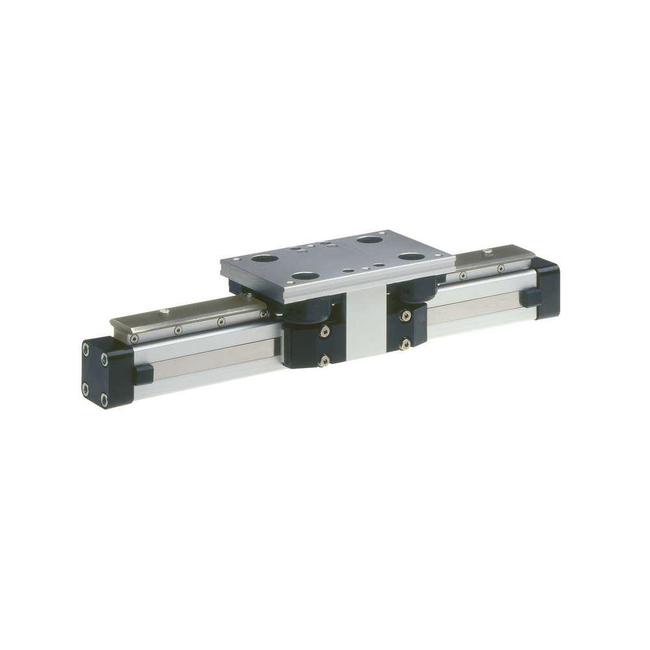

OSPE25-SB Screw Driven, POWERSLIDE Roller Guide, Rodless Electric Linear Actuator
Brand: Parker HannifinThe field-proven POWERSLIDE roller guide option OSPE25-SB screw driven electric linear actuator is designed to offer medium precision positioning at a 100% duty cycle, all packaged in a compact, versatile point to point positioner for transfer handling operations within industrial, manufacturing and assembly environments.
Features- Ball screw driven actuator for dynamic and precise positioning with medium travel
- High acceleration and efficiency for demanding processes
- Roller bearing for smooth travel in high demanding and harsh environments
- Hardened steel guide rail with selective load capability
- Pre-configured motor, gearhead and control package for simplified installation
- Integrated seal strip offering IP54 protection
- Pre-configured motor and gearhead mounting kits for simplified installation
- Contactless sensing for positional feedback
Specifications
Brand
Additional Protection Option
- Steel Strip Cover
Approvals & Certifications
- Cleanroom Certified (Custom Option)
Bearing Type
- Powerslide Roller Guide
Corrosion Resistant Option
- No
Drive Type
- Ballscrew
Idler Unit Option
- No
Linear Feedback Device
- No
Maximum Acceleration (Inch/S2)
- 77.3
Maximum Acceleration (m/S2)
- 2
Maximum Payload FZ (N)
- 910 - 1190
Maximum Speed (inch/sec)
- 9.8
Maximum Speed (m/sec)
- 0.25
Maximum Stroke (inch)
- 43
Maximum Stroke (mm)
- 1100
Maximum Thrust FX (Lbs)
- 56
Maximum Thrust FX (N)
- 250
Position Repeatability (± Inch)
- 0.002
Position Repeatability (± mm)
- 0.05
Profile Width (mm)
- 41
Series
- OSP-E
Typical Payload FZ (N)
- 100 - 1190
- Pick and Place Applications
- Packaging, Labeling and Wrapping Systems
- Pusher, Picker and Gripper Applications
- Positioning
- Feeding
- Cutting
