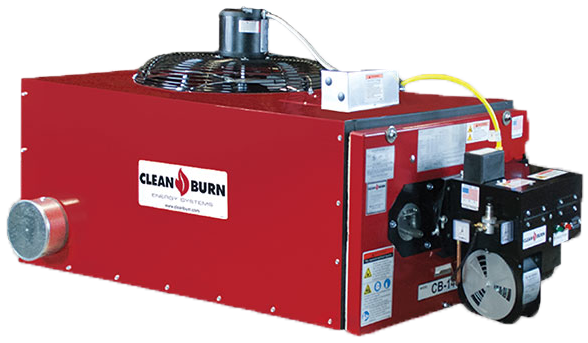

CB-140 Waste Oil Furnace
Brand: Clean Burn, LLCThe Clean Burn Model CB-140 is the smallest and most economical Clean Burn used-oil furnace in terms of initial cost. It produces approximately 140,000 BTU/hr. and is ideal for small garages, shops, and workspaces.
Features- Engineered from the Ground Up to Burn Waste Oils
- Patented Heat Exchanger Generates More Heat
- Unique Non-welded Flue Tubes for Longer Service Life
- Advanced Burner Preheats Oil to Optimize Combustion
- Swing-away Burner and Door Make Service Easy
- Longest Cleaning Interval of All Units in its Class
- Lower Stack Temperatures, Higher Heat Output
- Automatic Flow Control Means No Fuel Adjustment Required
- Ideal for Unit Heating or with a Clean Burn Recycling Center
- Unequaled Service And Support from Clean Burn Distributors
Specifications
Brand
Maximum BTU per Hour
- 140,000
- 41 kW
Maximum Oil Consumption
- 1.0 GPH
- 3.8 L/h
Fuels
- Used oils: Crankcase,ATF, hydraulic
- Fuel oils: #2, #4, and #5 fuel oil
Air Flow Output
- Unit heater 2000
- Axial fan
- Furnace cannot be ducted
Air Compressor Required
- 2.5 CFM at 25 PSI
- 4.25 m3/h at 2 bar
Stack Size
- 6 inch diameter
- 15cm diameter
Assembled Furnace Dimensions
- 61 x 32 x 32 in
- 155cm x 81cm x 81cm
- L x W x H
Uncrated Approximate Weight
- 220 pounds
- 99.8 kg
Electrical Requirements
- 115 VAC 60 Hz, single phase 30 A circuit breaker
