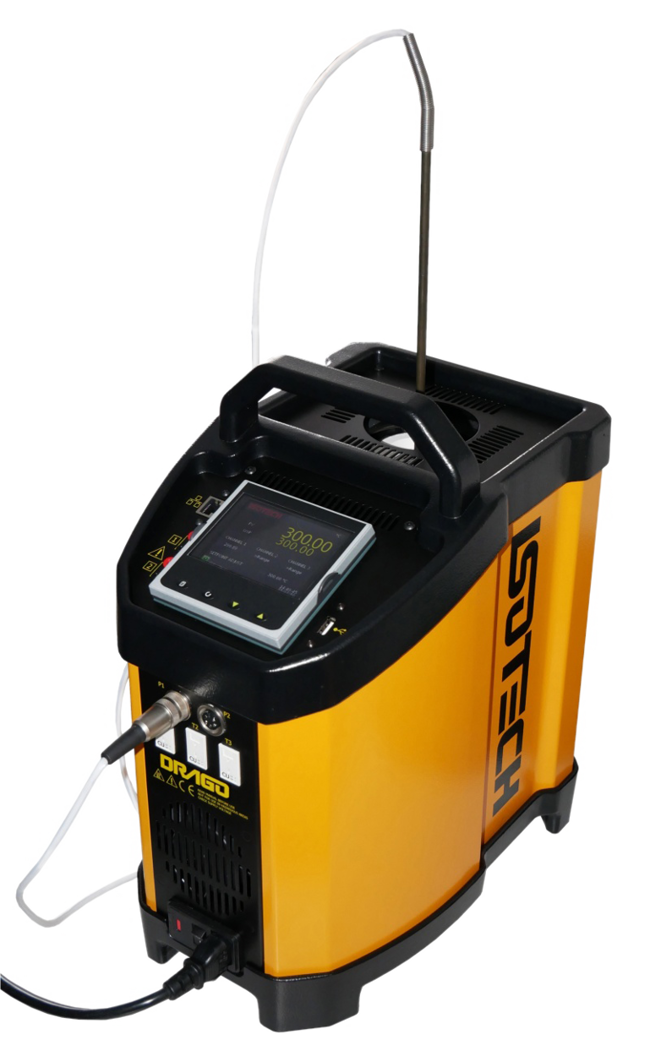

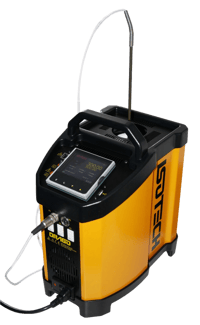

Drago 4934
Brand: Isotech
The Drago and Hyperion (-25°C to 140°C) have large calibration volumes, 65mm x 160mm deep, which makes them ideal to use as portable liquid baths for high accuracy calibration of awkwardly shaped sensors.
The Hyperion and Drago have large calibration volumes, 65mm x 160mm deep, which makes them ideal to use as portable liquid baths. Stirred liquid baths are suitable for temperature sensors of all types, sizes and shapes.
Liquid Baths can provide smaller calibration uncertainties than dry blocks and when used with suitable reference thermometers, accuracies of up to 0.005°C can be achieved.
These models are part of the award winning Isocal-6 family and with a reference probe can be used with different accessories for Dry Block, Infrared, Surface Calibration and even with ITS-90 Fixed Point Cells for uncertainties to 0.001°C.
In Dry Block Mode, the large 65mm diameter block allows for the calibration of either larger probes or for calibrating many sensors simultaneously.
As a Liquid bath the sensors can be placed directly into the stirred liquid thus avoiding the need for specially drilled blocks. If the liquid is directly in the block then the controller only model, or Basic (B) model, can be selected.
However, instead of putting liquids directly in the block liquid containers can be used to facilitate rapid change of fluids.
For greater accuracy, or when using a liquid container, Dry Block Insert, Blackbody Target or the Surface Sensor Kit a separate reference thermometer should be used to compensate for the varying offset between the controller and the accessory temperature.
Features- Multi Function: Six Modes including Dry Block and Liquid Bath
- 65mm Volume: Ideal Liquid Bath
- Calibrate entire measurement loop - using a heat source rather than an electrical simulator, a test instrument and sensor can be calibrated as a system
Specifications
Brand
Temperature Range
- 30° to 250° C
Stability: Dry Block/ Liquid Bath
- ± 0.005° to ± 0.030° C
Display Resolution
- 0.001° C over whole range
Input Channel Accuracy: Thermocouple
- E, J, K, N: ± 0.2° C @ 660° C R: ± 0.6° C S: ± 0.7° C @ 660° C T: ± 0.2° C @ 150° C
CJC Accuracy
- ± 0.35° C
Input Channel Accuracy: RTD
- ± 0.05° C ± 0.005 % Reading
Stability
- ± 0.03° C
Display Resolution 3
- 0.15° C
Uniformity – Radial, Liquid Bath Mode
- < 0.007° C
Uniformity – Axial, Liquid Bath Mode (40 mm)
- < 0.013° C
Uniformity – Radial, Dry Block Mode (Between Wells)
- < 0.008° C
Uniformity – Axial, Dry Block Mode (40 mm)
- < 0.040° C
Heating Time
- 30° to 250° C: 40 mins
Cooling Time
- 250° to 30° C: 90 mins
Insert Size
- 65 x 160 mm
Insert Types
- Standard 8 x 8 mm + 2 x 4.5 mm, Undrilled or Custom Drilled
Power
- 115 or 230 Vac 50/60 Hz 1000 Watts
Dimensions
- 384H (including handle) x 212W x 312D mm
Weight
- 8 kg
