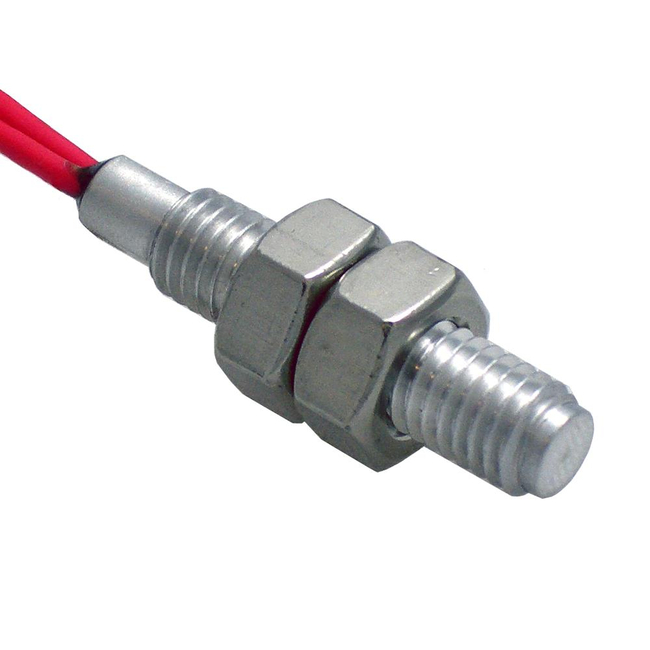

Proximity Sensor - PS
Brand: Parker HannifinParker's PS proximity sensor delivers non-contacting proximity sensing to detect nearby objects.
The sensor may be combined with our complementary magnet target or any other supplied magnet.
They have a threaded aluminum construction which allows for variation during the mechanical assembly of the end application.
Switch activation is a function of the strength of the actuator (magnet), how close it is to other ferrous objects, and the alignment between the sensor and the actuator.
A sealed Deutsch connector combined with potted electronics gives the sensor excellent protection for exposed outdoor applications.
Features- Aluminum housing for corrosion resistance.
- 1/2" air gap with optional magnet, large gaps possible with other magnet
- M8-1.25 threads for adjustability
- IP67 rating
Specifications
Brand
Contact Rating (Watts)
- 5
Electrical Connectors
- DTM
Housing Material
- Aluminum
IP Protection Rating
- 67
Markets
- Agriculture, Construction, Forestry, Material Handling, Specialty, Transportation
Model Number
- PS65, Magnet Target
Mounting
- M8-1.25 Thread, 1/4"-20 UNC-2A
Sensor Type
- Proximity
Switching Current (Maximum)
- 0.3 A
Switching Voltage (Maximum)
- 100 Vdc
Working Temperature (°C) Maximum
- 105° C
Working Temperature (°C) Minimum
- -40° C
- Home, Extend, and Retract Positions
- Limit Switch: Booms, Outriggers
- Safety Interlock: Doors, Lap Bar, Panels
