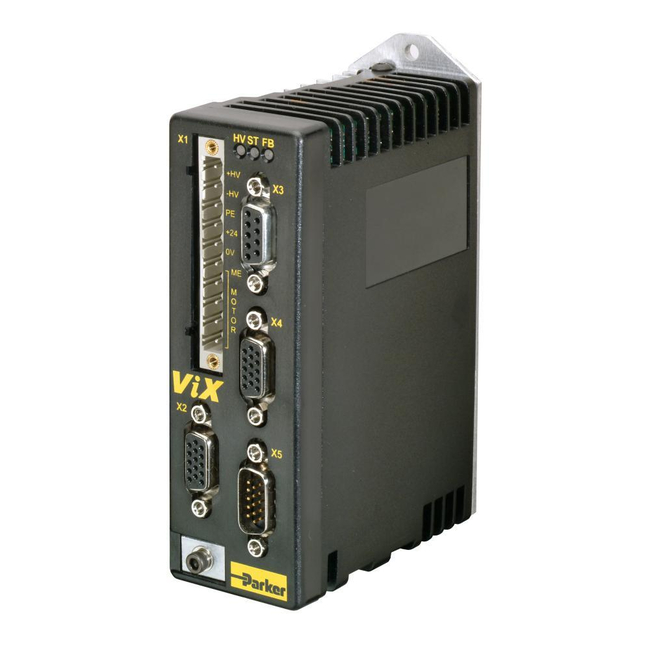

ViX250 Low Voltage Servo Drive/Controller : 2.5A / 24-80Vdc (250VA)

ViX250 Low Voltage Servo Drive/Controller : 2.5A / 24-80 Vdc (250VA)

Brand: Parker Hannifin
Add Product to My Catalog

With a 250VA/80Vdc power rating the highly compact ViX servo drives provide a cost-effective solution to a wide range of low-power applications.

They accept industry standard command signals and also offer the options of an integral controller & CANopen.

Specifications

Brand

Approvals & Certifications

  • CE (EMC & LVD) UL Recognized, cUL Recognized, RoHS Compliance

Communication Interface

  • RS-232, RS-485, CANopen

Continuous Output Current Rating

  • 2.5 A

Drive Format

  • Single Axis Technology

Input Supply Voltage

  • 24 - 80 Vdc

Modes of Control

  • Programmable Control - Proprietary Language Electronic Gearing Position Control (External Command) / Velocity Control (External Command) / Torque Control (External Command) Analog Command Input Step / Direction Command Input

Operating Temperature (°C)

  • 0° to 40° C

Operating Temperature (°F)

  • 32° to 104° F

Product Type

  • Servo Drive

Series

  • ViX
