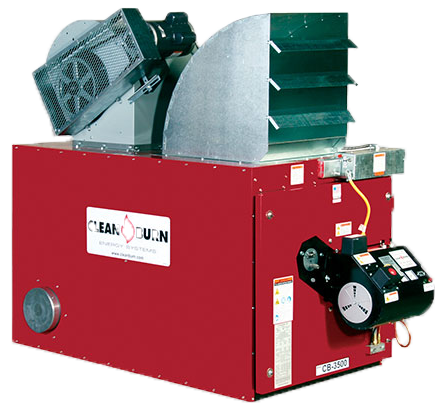

CB-3500 Multi-oil Furnace International Model
Brand: Clean Burn, LLCThe Clean Burn Model CB-3500 is an industrial grade waste oil furnace for service facilities with four or more bays and where larger quantities of waste oil are generated or collected.
The CB-3500 generates approximately 350,000 BTU/hr and is UL listed for use as either a unit heater or central - ducted furnace.
A Clean Burn Distributor is the expert you want for furnace selection and installation.
Features- Engineered from the Ground Up to Burn Waste Oils
- Patented Heat Exchanger Generates More Heat
- Unique Non-welded Flue Tubes for Longer Service Life
- Advanced Burner Preheats Oil to Optimize Combustion
- Swing-away Burner and Door Make Service Easy
- Longest Cleaning Interval of All Units in its Class
- Lower Stack Temperatures, Higher Heat Output
- Automatic Flow Control Means No Fuel Adjustment Required
- Ideal for Unit Heating or with a Clean Burn Recycling Center
- Unequaled Service and Support from Clean Burn Distributors
Specifications
Brand
Maximum BTU per Hour
- 350,000
- 102 kW
Maximum Oil Consumption
- 2.3 GPH
- 8.2L/h
Fuels
- Used oils: Crankcase,ATF, hydraulic
- Fuel oils: #2, #4, and #5 fuel oil
Air Flow Output
- Unit heater 4200
- Central furnace (ducted)
- 0.25 SPWC (in.) 4000
- 0.30 SPWC (in.) 3800
Air Compressor Required
- 2.0 CFM at 25 PSI
- 3.4 m3/h at 1.7 bar
Stack Size
- 8 inch diameter
- 20cm diameter
Assembled Furnace Dimensions
- L x W x H
- 74” x 35" x 61"
- 188cm x 89cm x 155cm
Uncrated Approximate Weight
- 836 pounds
- 379 kg
Electrical Requirements
- 230 VAC 60 Hz, single phase
- 30 A circuit breaker
