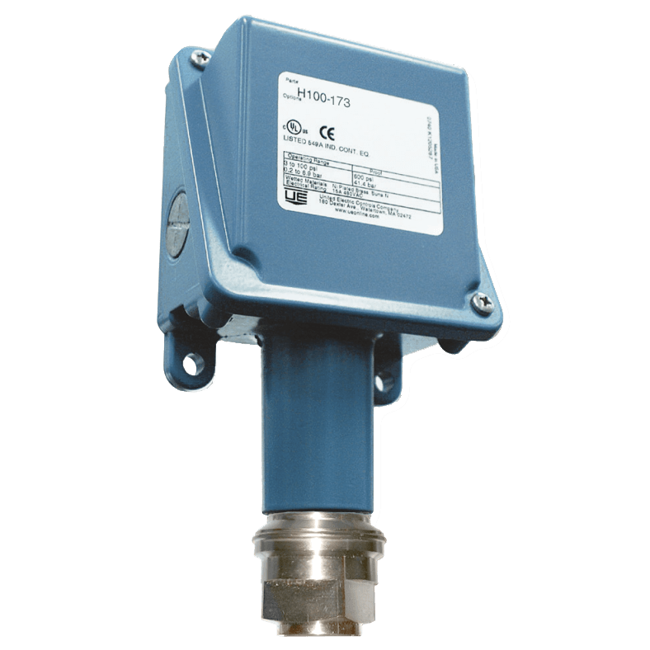

100 Series Type H100 Models 171 to 174 Pressure Switch
Brand: United Electric Controls Ltd
The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment.
The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch.
Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps and compressors), inputs for annunciator panels, and fire suppression systems.
Features- Single Switch Output
- Epoxy Coated and Gasketed Cast Aluminum Enclosure Type 4X
- Tamper-Resistant Set Point “Lock”
- Heat Trace and Freeze Protection Thermostats
Specifications
Adjustment Type
- Captive Clamp Screws
- Factory Set (Pre-Set)
- Set Point Adjustment
Ambient Temperature Range
- -40° to 71° C (-40° to 160° F)
Applications
- Fire Suppression System
- Freeze Protection
- Heat Tracing
- Inputs for Annunciator Panel
- OEM Equipment
- Process Plants
- Processing Equipment (Pumps, Compressors)
Approvals & Certifications
- ATEX Directive (94/9/EC) II 1 G EEx ia IIC T6 Tamb: -50° to 60° C (-58° to 140° F)
- CE
- CRN - Canadian Registration Number
- CSA C22.2 No. 14, File E42272
- GOST-R 51330.0, 51330.1, 51330.10 & 51330.14
- Low Voltage Directive (LVD) 73/23/EC & 93/68/EEC
- PED: 97/23/EC
- UL (C,US) 508
Approvals & Certifications
- ISO 9001
Conduit Connection
- 1/2" NPT Female
Deadband
- psi: 0.1 to 3.5 (kPa: 0.69 to 24.13, Mbar: 6.9 to 241.3)
Diaphragm Material
- 316L Stainless Steel
Electrical Connectors
- 7/8" Diameter Knockout
- Watertight Conduit Fitting, Connects 7/8" Hole to 1/2" NPT FemaleFitting
Electrical Contacts
- Gold Contacts, 1 A at 125 Vac Resistive
- Normally Closed
- Normally Open
Electrical Rating
- 0.5 A Resistive, 0.03 A Inductive at 125 Vdc
- 2 A Resistive, 1 A Inductive at 24-30 Vdc
- 20 A, 125/250/480 Vac Resistive
- Close Deadband, 5 A at 125/250 Vac Resistive
- External Manual Reset, 15 A at 125/250/480 Vac Resistive
- High Ambient, Vapor Sealed Switch, 15 A 125/250 Vac Resistive
Enclosure Finish
- Epoxy Powder-Coated
Enclosure, Body Material
- Die Cast Aluminum
Environmental Protection
- IP66
- NEMA 4X
- Typical 4X
Mounting
- Pipe
- Surface
NACE & NIST
- NACE MR-0175 Compliant
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1/4" NPT Female
Orifice Size
- 0.72" (18.28 mm) for Clean-Out Purposes
Output
- DPDT (Single Switch)
- SPDT (Single Switch)
Overpressure & Static Pressure Limits
- Overpressure - psi: 500 (kPa: 3,447, bar: 34.47)
Proof Pressure
- psi: 1,000 (kPa: 6,895, bar: 68.9)
Repeatability
- Set Point Repeatability: ± 1 % of Adjustable Range
Service
- Oxygen Service Cleaning, Alcohol Cleaning to Remove Residue from the Process Connection
Set Point - Decreasing
- bar: 0.1 to 13.8
- kPa: 6.9 to 1,379
- psi: 1 to 200
Set Point - Increasing
- bar: 0.1 to 13.8
- kPa: 6.9 to 1,379
- psi: 1 to 200
Shock
- Set Point Repeats after 15 G, 10 ms Duration
Storage Temperature
- -54° to 71° C (-65° to 160° F)
Switch Type
- One SPDT Snap-Action Switch
System Pressure
- bar: 34.5
- kPa: 3,447
- psi: 500
Vibration
- Set Point Repeats after 2.5 G, 5 to 500 Hz
