G1000 Smoke Density Monitor

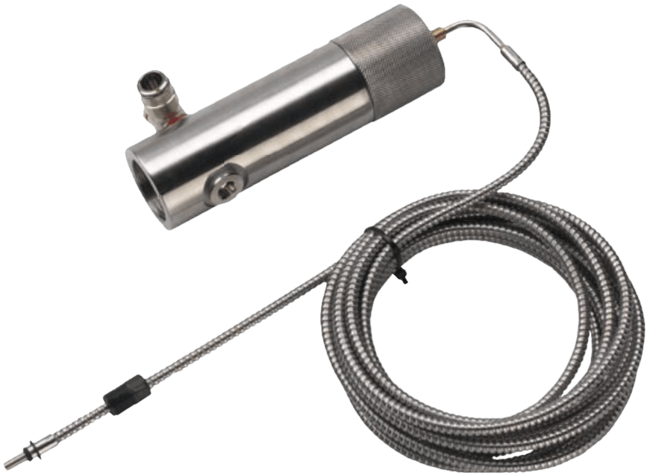

Brand: Green Instruments A/SThe G1000 Smoke Density Monitor is a particularly robust system that is well suited to resist heat and vibrations in and around smoke stacks. Our patented technology removes the light source from the smoke stack contrary to competing technology. Instead, the infrared LED is placed in the monitor cabinet and the light beam brought to the smoke stack via robust optic fibers. The lenses of the optic heads are kept clean with purge air.
Specifications
Brand
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
Approvals & Certifications
- LLOYD
Cable Length
- 15 ft (4.5 m)
- 19.69 feet (6 m)
- 24.61 ft (7.5 m)
Cable Material
- Optic Fibers: Glass-fiber Core in Stainless Steel Sheathings with Brass End Tip
Communication
- CAN Bus
- RS-485 Bus
Delay Time
- Alarm Delay: Default 5 seconds (Programmable 0 to 99 seconds)
Display
- 0 to 100 % Opacity Level (Programmable)
Distance
- Scanning Distance: 3.28 to 9.8 feet (1 to 3 m)
Electrical Contacts
- Relay Function: Normally Closed
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP65
Operating Temperature
- Maximum
Output
- 4-20 mA Output Signal (Linearized): (4 mA ≈ 100 % - 20 mA ≈ 0 % Opacity) - Max.
Power Supply
- 105-130 Vac
- 20-30 Vdc
- 210-250 Vac at 50/60 Hz, 12 VA, Max.
Relay Output
- Relay Function: 2 Relays, Volt Free, Freely Configurable [(250 Vac/2 A) - Max.
