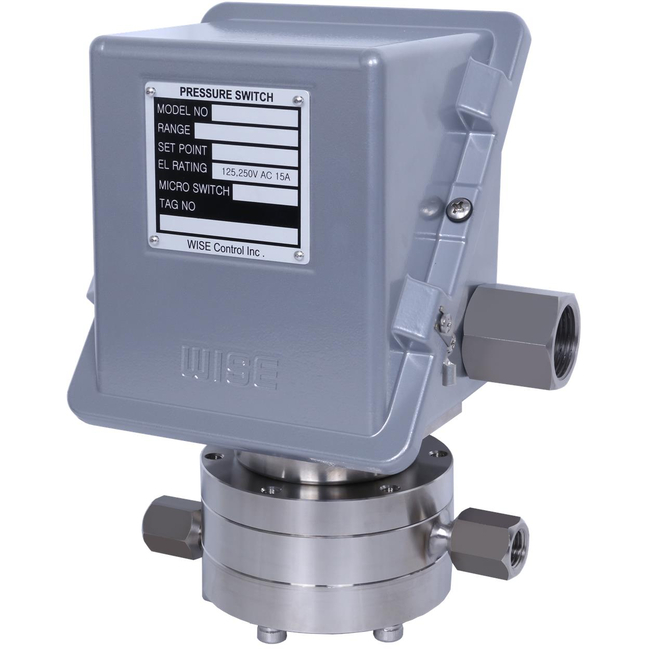

Weatherproof Type Differential Pressure Switch P946 Series
Brand: Wise Control IncP946 diaphragm type differential pressure switch can be used in a variety of process lines.
Internal micro switch is operated by pressure of various fluids, such as atmospheric pressure and water pressure.
The pressure sensing part is a force balanced and piston actuated assembly.
Specifications
Brand
Adjustable Range
- 15 kPa to 0.4 MPa
Case & Cover
- ALDC 12.1 (Silver Gray Finished)
Conduit Connection
- 3/4" NPT Female
Contact
- One SPDT
- Micro Contact Typical
- Two SPDT (Only Available with Single Set Point)
Contact Rating
- DC 125 V, 0.4 A for Resistance Load
- AC 125 V / 250 V, 15 A
- DC 125 V, 0.03 A for Inductive Load
Deadband
- Two SPDT: Approximately 10 % of Adjustable Range
- Fixed
- One SPDT: Approximately 5 % of Adjustable Range
Degree of Protection
- EN 60529 / IEC 529 / IP65
Element
- 316L Stainless Steel
Fluid
- Gas & Oil
Options
- Bracket: 304 Stainless Steel & 316 Stainless Steel Wall Mounting Bracket Remote Diaphragm Seal
Pressure Connection
- 316 Stainless Steel, Monel & Hastelloy C
Process Connection
- 1/4" NPT Female
Repeatability
- ± 1.0 % of Adjustable Range
Working Temperature
- Ambient: -20° to 65° C
- Fluid: Max.
