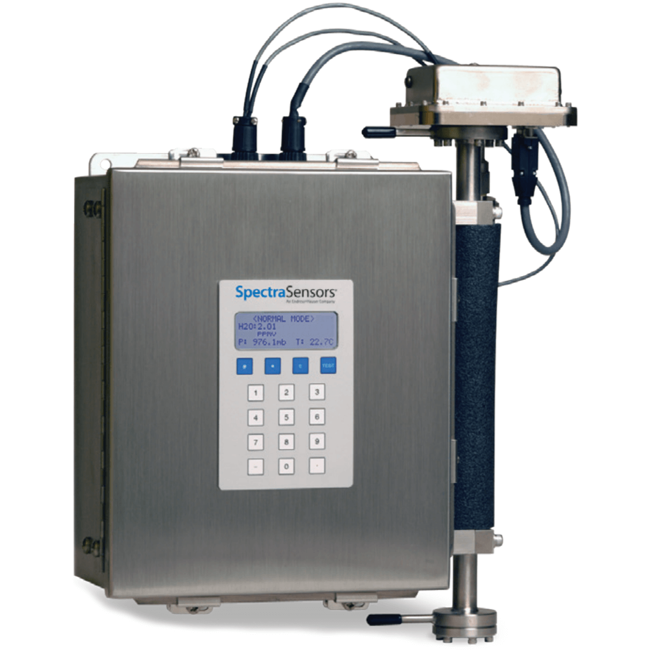

SS500/SS2000 Single Channel H2O or CO₂ Gas Analyzer
Brand: SpectraSensors, IncSpectraSensors SS500/SS2000 Single Channel Analyzer is extremely reliable and tailored for the needs of the natural gas industry.
The sensor measures gas using a patented Tunable Diode Laser Diode (TDL) to determine the concentration of the gas without coming into physical contact with the stream.
Features- Virtually maintenance free
- No interference from glycol, methanol or amine contaminants (vapor phase)
- Accurate, real-time measurements
- No wet-up or dry-down delays
- Reliable in harsh environments
- Short term payback; no consumables
- NIST-traceable calibration
- Analog and serial outputs for remote monitoring
- CSA certified
Specifications
Brand
Approvals & Certifications
- CSA Class I, Div. 2, Groups A, B, C, D, T3C, Class I, Div. 1, Groups B, C, D, T4
Communication
- Modbus Gould RTU or Daniel RTU or ASCII
- RS-232C
Current
- 1 A, Max.
- 1.6 A, Max.
- 3.2 A, Max.
Display
- LCD Display
Enclosure, Body Material
- Class I, Div. 1: Cast Aluminum
- Class I, Div. 2: 304 Stainless Steel
Environmental Protection
- Class I, Div. 1: NEMA 4
- Class I, Div. 1: NEMA 7
- Class I, Div. 1: NEMA 9
- Class I, Div. 2: NEMA 3R
- IP14
- IP66
Materials of Construction
- Sample Cell: 316L Series Polished Stainless Steel
Power Supply
- 100-240 Vac, 50/60 Hz
- 18-32 Vdc Optional
- 9-16 Vdc
Temperature Range
- -20° to 50° C (-4° to 122° F)
