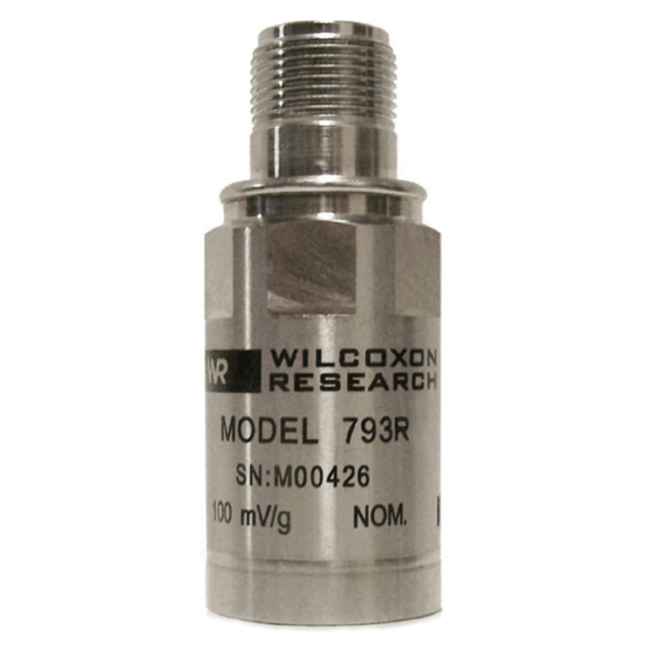

Model 793R Radiation Resistant Piezoelectric Accelerometer
Brand: Wilcoxon Sensing TechnologiesTop exit, radiation resistant piezoelectric, case isolated, MIL-C-5015 connector, 100 mV/g, ±5% sensitivity tolerance.
Features- Corrosion resistant
- Ground isolated
- Rugged design
- Hermetically sealed
- ESD protection
- Miswiring protection
- Mounts in any condition
- Radiation rated
Specifications
Approvals & Certifications
- CE
Circuit Protection
- ESD Protection
- Miswiring Protection
Electrical Connectors
- Cable (J9T2, Two-Conductor Shielded, Tefzel Jacket, 30 PF/feet)
- Output Connector: 2-Pin, MIL-C-5015 Style
- R6 Typical
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- Corrosion-Proof
Frequency
- Frequency Response (± 10 %): 2 to 7,000 Hz
- Frequency Response (± 3 dB): 1 to 15,000 Hz
- Frequency Response (± 5 %): 3 to 5,000 Hz
- Resonance Frequency, Nominal: 25 kHz
Humidity
- 100 % RH
Mounting
- 1/4-28 Tapped Hole
Mounting Position
- Any Orientation
Noise
- Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 700 µg
- Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 100 to 1,000 Hz): 5 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1 %
Output Impedence
- Maximum 100 Ω
Power Requirement
- 18-30 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range: 50 G Peak
Sensitivity
- Base Strain Sensitivity: 0.004 G/μstrain
- Sensitivity, ± 5 %, 25° C (77° F): 100 mV/g
- Transverse Sensitivity: Max. 5 % of axial
Shock
- Shock Limit: 5,000 G Peak
Temperature Range
- -50° to 120° C (-58° to 248° F)
Vibration
- Vibration Limit: 500 G Peak
Voltage
- Bias Output Voltage, Nominal: 12 Vdc
