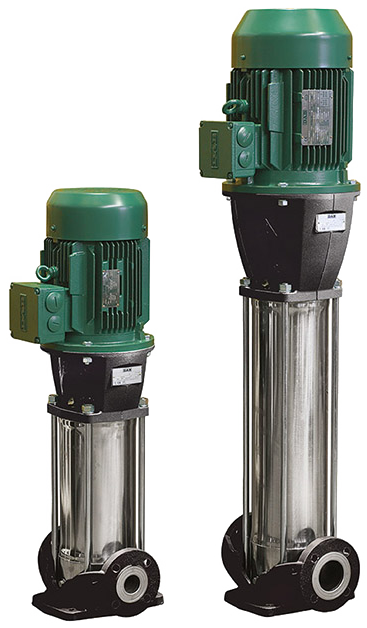

NKV 10,15,20 Vertical Multistage Pumps
Brand: Dab Pumps S.p.AVertical multistage centrifugal pump suitable for water systems of medium and large water utilities.
It is suitable for pressurization units, boiler feed, hot water circulation, and cooling water, fire fighting and washing systems, supplying drinking water and feeding autoclave systems, irrigation and sprinkler systems and water purification.
Specifications
Brand
Supply Voltage
- 3 x 230-400 V - 50 Hz
- 3 x 400 V - 50 Hz
- 3 x 380-480 V - 60 Hz
- 3 x 220-277 V / 380-480 V - 60 Hz
Degree of Protection
- IP55
Insulation Class
- F
Delivery
- 160 - 1166 l/min
Liquid Temperature
- -15° to 120° C
Maximum Environment Temperature
- 40° C
Storage Temperature
- -20° to 60° C
Maximum Working Pressure
- 25 bar (2500 kPa)
Maximum Working Pressure - NKV 32-45
- 32 bar (3200 kPa)
Relative Humidity in Air
- Maximum 95 %
Motor Construction
- CEI 2-3 / CEI 61-69 (EN 60335-2-41)
