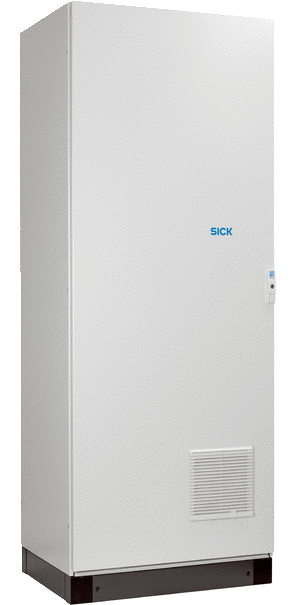

MCS300P Multicomponent Analysis System
Brand: Sick AGThe MCS300P HW is a hot/extractive analyzer system for measurement of gases.
It measures IR- or VIS-active components with variable measuring ranges for monitoring and controlling of combustion and flue gas conditioning.
The heated system components prevent a temperature drop below the water and acid dewpoint.
This results in lower maintenance and higher reliability and long-time stability of the system, also under rugged and demanding conditions.
Automatic adjustment functions, easy operation concept and modern communication protocols results in a quick and easy integration into a local control system network.
Features- Economic, automatic adjustment without expensive test gases
- Easy remote control by integration in existing networks
- Automatic control of the complete measuring system and probe
- Low maintenance and reliable due to hot measurement
- In combination with probe SCP3000 also for measurements at high dust loads and high temperatures
- Short response time due to high sample gas flow
Specifications
Brand
Certifications & Approvals
- CE
Gas Flow Rate
- 150 to 800 L/h
Measured Value
- CO, CO₂, HCl, H₂O, NH₃, NO, NO₂, N₂O, SO₂, O₂
Measuring Range
- SO₂: 0 to 200 ppm / 0 to 10 Vol %
- O₂: 0 to 1 Vol % / 0 to 21 Vol %
- N₂O: 0 to 500 ppm / 0 to 7,500 ppm
- NO₂: 0 to 500 ppm / 0 to 4,000 ppm
- NO: 0 to 750 ppm / 0 to 15,000 ppm
- NH₃: 0 to 550 ppm / 0 to 5,000 ppm
- H₂O: 0 to 1 Vol % / 0 to 60 Vol %
- HCl: 0 to 700 ppm / 0 to 12,000 ppm
- CO₂: 0 to 20 Vol % / 0 to 100 Vol %
- CO: 0 to 800 ppm / 0 to 5 Vol %
Response Time
- ≤ 150 s
Process Temperature
- ≤ 1,300° C Depending on sampling probe
Sample Gas Temperature
- ≤ 220° C
Process Pressure
- 800 to 1,200 hPa
Ambient Temperature
- With Cooling Device 5° to 45° C
- 5° to 35° C
Ambient Humidity
- ≤ 80 % Non-Condensing
Environmental Protection
- IP43
Communication
- Modbus
- Ethernet
Indication
- LC Display
