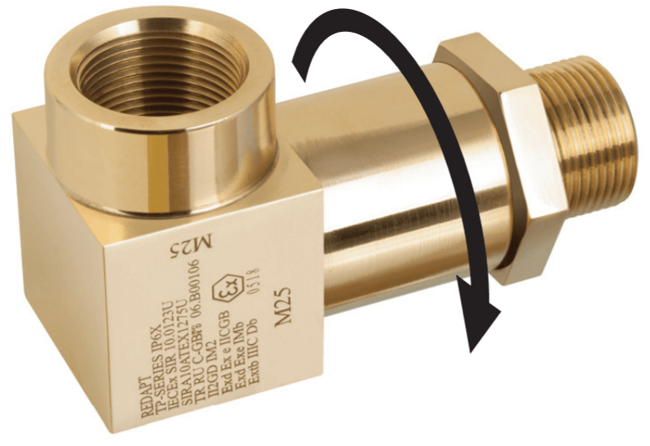

TAU/TPU Series Swivel Adaptor
Brand: Eaton Corporation_Swivel_Adaptor.png)
Redapt 90° and Inline Series of Adaptors provide a method of matching electrical threadforms on hazardous area approved equipment whilst ensuring the integrity and Ex approval of the installation is maintained with the addition of the new “SWIVEL FEATURE”
- In-line and 90° models available
- International Ex approvals
- IP66, IP68
- Male to male and female to female options available
- Various threadforms/materials available
Benefits:
- Allows 360° choice of cable entry/exit positions (90° model)
- In-line models allow independent connection at both ends
- Improves ease of installation in confined or difficult situations
Specifications
Brand
Approvals & Certifications
- ATEX: I M2, (Not Aluminum) Ex d, Ex IIC Gb, Ex d, Ex E I Mb (Not Aluminum), Ex Tb IIIC Db 6X, EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31, Sira 10-ATEX-1275U
- Ex 0518
- GOST: ExdIU, ExeIU, ExeIIU, ExdIICU, IP66, TR RU C-GB.GB06.B.00106
- IECEx: Ex d Ex E IIC Gb, Ex d Ex E IMb, Ex Tb IIIC Db, IP 6X, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31, IECEx SIR 10.0123U, IECEx SIR 12.0016X (In-Line)
Environmental Protection
- IP66
- IP68
Materials of Construction
- 316 Stainless Steel
- Aluminum
- Brass CZ121
- Plating: Electroless Nickel
- Plating: Zinc
Metric Connection
- M20 Female
- M20 Male
- M25 Female
- M25 Male
- M32 Female
- M32 Male
- M40 Female
- M40 Male
- M50 Female
- M50 Male
- M63 Female
- M63 Male
- M75 Female
- M75 Male
Temperature Range
- -20° to 60° C (-4° to 140° F) Exd
- -50° to 200° C (-58° to 390° F) EXe
