MLS Line Guidance and Grid Localization

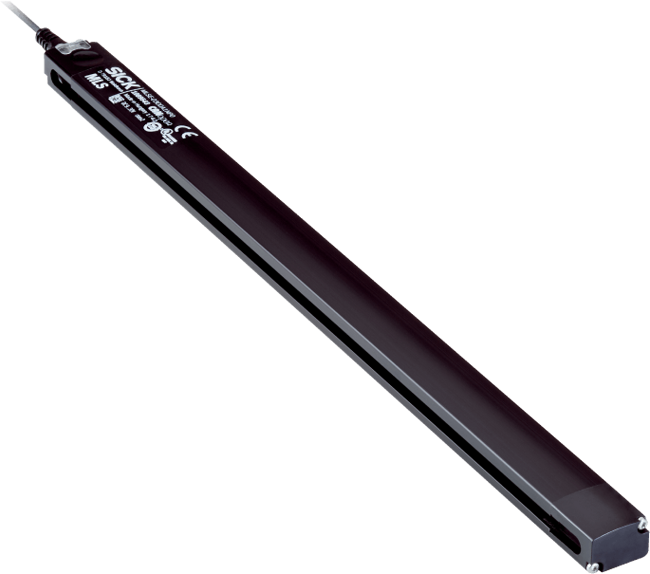

Brand: Sick AGThe MLS is a magnetic line guidance sensor for navigating automated guided vehicles and carts. Navigation is done by aligning the sensor to the center of the magnetic lane. The sensor reliably differentiates between up to three lanes.
The vehicle can therefore maneuver through branches and lane junctions with no problem. When selecting the magnetic band and the installation height, the MLS allows for a lot of freedom and is available in different variants with various detection ranges.
This enables high flexibility when it comes to design and retrofitting. Magnetic marks for additional vehicle commands can be attached to the side next to the lane. An integrated inertial measuring unit supports vehicle navigation with information on the position of the sensor.
Features- Rugged aluminum housing
- Easy installation: Thin housing design and different measurement area variants
- Quick commissioning without configuration. Optional configuration and visualization via a user interface.
- Large ground clearance: 10 mm to 70 mm of distance to the magnetic band can be installed
- Safe lane detection and differentiation of up to 3 lanes for intersections and lane junctions
- Monitoring of magnetic strength of the guidance lane
- Easy and reliable detection of command marks (STOP, MERGE, SPEED CHANGE)
- Support of vehicle navigation due to integrated inertial measuring unit
1 - 12 of 12 Part Numbers
1090687
- Detection Range - 200 mm
- Connection Type - Cable with M8 Male Connector, 4-Pin, 0.3 m
- Terminal Resistor - No Internal Resistor
- Communication Interface - CANopen
- Type - MLSE-0200A2NP0
1090688
- Detection Range - 300 mm
- Terminal Resistor - No Internal Resistor
- Type - MLSE-0300A2NP0
1090689
- Detection Range - 400 mm
- Terminal Resistor - No Internal Resistor
- Type - MLSE-0400A2NP0
1090690
- Detection Range - 500 mm
- Terminal Resistor - No Internal Resistor
- Type - MLSE-0500A2NP0
1090691
- Detection Range - 600 mm
- Terminal Resistor - No Internal Resistor
- Type - MLSE-0600A2NP0
1092496
- Detection Range - 200 mm
- Connection Type - Cable with M8 Male Connector, 4-Pin, 0.3 m
- Terminal Resistor - Internal 120 Ohm Terminator
- Communication Interface - CANopen
- Type - MLSE-0200A2TP0
1092497
- Detection Range - 300 mm
- Terminal Resistor - Internal 120 Ohm Terminator
- Type - MLSE-0300A2TP0
1092498
- Detection Range - 400 mm
- Terminal Resistor - Internal 120 Ohm Terminator
- Type - MLSE-0400A2TP0
1092499
- Detection Range - 500 mm
- Terminal Resistor - Internal 120 Ohm Terminator
- Type - MLSE-0500A2TP0
1092500
- Detection Range - 600 mm
- Terminal Resistor - Internal 120 Ohm Terminator
- Type - MLSE-0600A2TP0
1104468
- Detection Range - 200 mm
- Connection Type - Cable with M12 Male Connector, 4-Pin, 0.3 m
- Terminal Resistor - No Internal Resistor
- Communication Interface - CANopen
- Type - MLSE-0200A2NQ0
1113030
- Detection Range - 200 mm
- Connection Type - Cable, 4-Wire, 3 m
- Terminal Resistor - No Internal Resistor
- Communication Interface - Modbus
- Type - MLSE-0200C2NUA
1 - 12 of 12 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cULus Listed
Enclosure Rating
- IP67
- IP68
- IP65
Measuring Range
- 100 to 1,000 mm
Communication Interface
- CANopen
- Modbus RTU RS-485
- Line guidance for automated guided vehicles and carts (AGVs/AGCs) with magnetic band
- Fine positioning of automated guided vehicles
