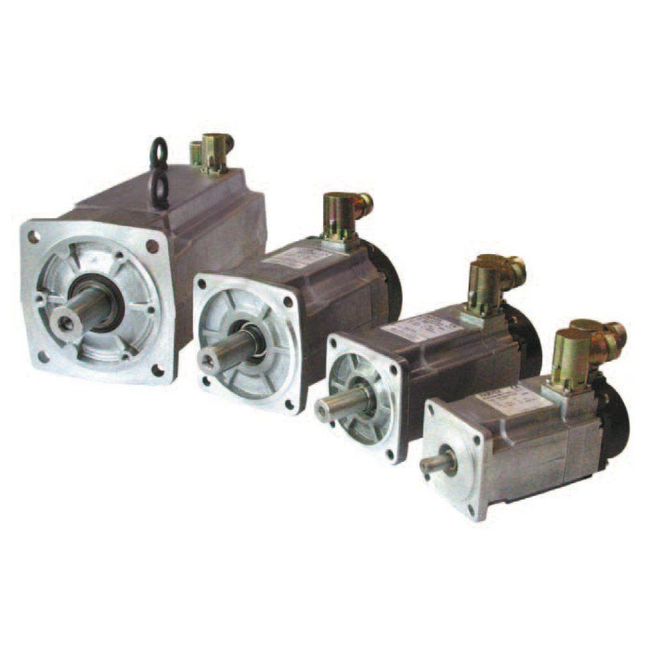

High-Speed Servo Motors - NV Series
Brand: Parker HannifinThe NV series is a range of compact servo motors specially designed for high speed operation.
NV motors are balanced with high accuracy to minimize the level of vibration and to increase their service life, making them particularly suitable for auxiliary spindle applications on machine tools.
NV motors feature high dynamic performance and torque densities, while taking advantage of a large variety of options and customization possibilities.
Features- High-Speed capabilities, precise and accurate positioning, high dynamic performance
- Compact and robust
- Design flexibility
- Mounting - flange with clearance holes
- Mechanical Interface - solid smooth shaft
- Feedback Sensor
- 2 pole resolver (standard)
- absolute encoders : EnDat, Hiperface
- without sensor (on request)
- Connections - connectors / terminal box (fan cooled motors)
- Options - thermal protection (PTC, Thermo Switch or KTY)
Specifications
Brand
Approvals & Certifications
- CE Marked
Continuous Power Range
- 0.7 to 11 KW
Continuous Torque (In/Lbs)
- 3.5 to 106
Continuous Torque (Nm)
- 0.4 to 12
Cooling Method
- Air-Cooled / Natural Convection / Air-Cooled / Forced Ventilation (NV860 V)
Feedback Device
- Resolver / Absolute Encoder (EnDat, Hiperface) / without Sensor
Frame Size
- 60 mm / 80 mm / 110 mm / 130 mm
Input Supply Voltage
- 230 Vac / 400 Vac
IP Protection Rating
- IP64 (Standard) / IP65 (Option)
Maximum Speed (rpm)
- 7000 to 17,000 (Rated Speed)
Motor Pole Count
- 10
Parker Drive Compatibility
- PSD / Compax3 / AC890SD / AC30 V
- Tooling Machines
