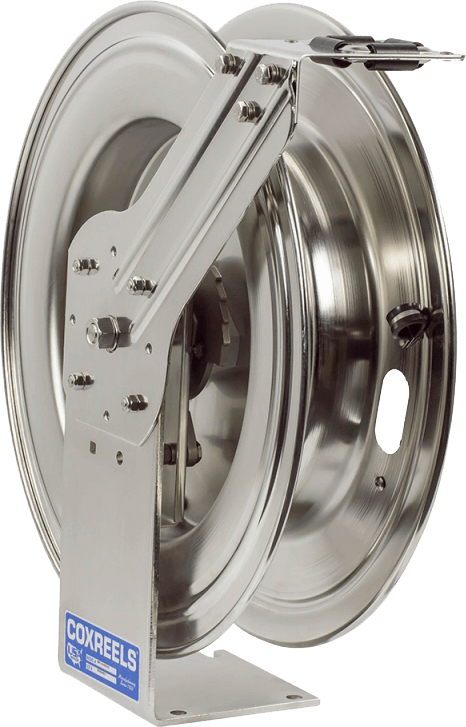

Spring Driven Reels | MPD-Series

Brand: COXREELS®
Add Product to My Catalog

COXREELS® MPD Series "Dual Hydraulic" hose reels have similar features to their related series, but have been redesigned to handle dual hydraulic applications. spring driven retraction reel at 3,000 PSI.

Swivel
  • External fluid path with dual port 90° full - flow 1/2" ORB port swivel inlet
  • Swivel Seals: TEFLON

Design & Structure
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation

Retract
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non - corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi - position lock ratchet mechanism secures hose at desired length
Features
  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide
  • SWIVEL - External fluid path with dual port melodized 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strength without the weight. Exclusive Super Hub™ dual axle support system.
  • MULTI-POSITION GUIDE ARM - Versatile aluminum guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, one-side supply/return hookup, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Specifications

Brand

Maximum PSI

  • 3000

Inside Diameter

  • 3/8"
  • 1/2"
  • 1/4"

Hose Length

  • 30 ft
  • 50 ft

Optional Hose

  • Yes
