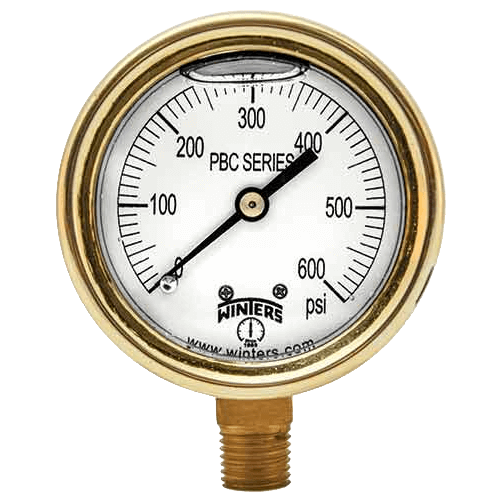

PBC Forged Brass Case Pressure Gauge
Brand: Winters Instruments
Features
- One piece forged brass case designed for severe service conditions
- Easy-to-read single or dual scale dial
- ASME B40.100 compliant
- CRN registered
Specifications
Brand
Accuracy
- 2-1/2" (63 mm): ± 1.5 % of Full Scale
- 4" (100 mm): ± 1 % ANSI / ASME Grade 1A
Ambient Temperature Range
- -40° to 65° C (-40° to 150° F)
Approvals & Certifications
- CRN - Canadian Registration Number
Enclosure, Body Material
- Forged Brass
Environmental Protection
- IP65
Fill Material
- Glycerin
Lens
- Polycarbonate Lens
Materials of Construction
- Pointer: Aluminum, Anodized Black
- Socket: Brass
NPT Connection
- 2-1/2" (63 mm) & 4" (100 mm): 1/4" NPT Male Bottom or Back
- 4" (100 mm): 1/2" NPT Male Bottom
Pressure Range
- bar: -1 to 689.5
- inHg: -30 to 0
- kPa: -101.4 to 68,950
- psi: -14.7 to 10,000
Process Temperature
- -40° to 65° C (-40° to 150° F)
Ring Material
- 2-1/2" (63 mm): Gold Coloured ABS
- 4" (100 mm): Polished Brass
Size
- Dial: 2-1/2" (63 mm)
- Dial: 4" (100 mm)
Wetted Materials
- Brass
- High Vibration Industrial Installations Including Hydraulic and Fracking Systems
