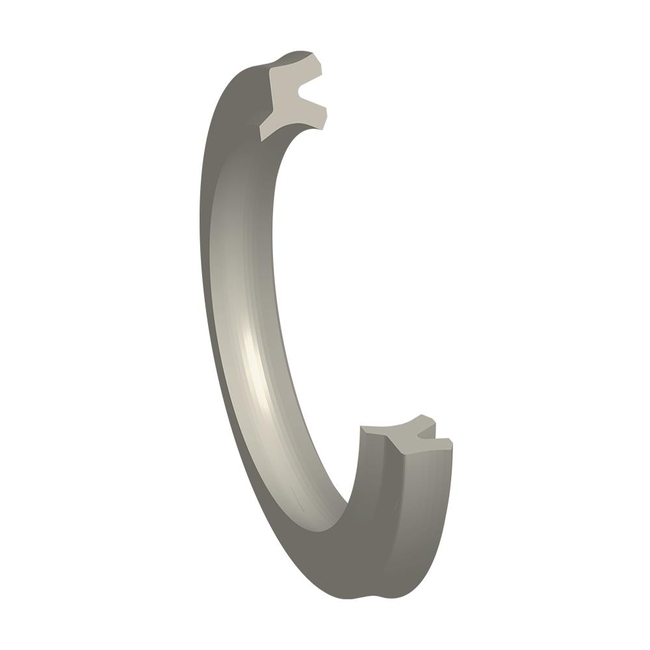

Double-Acting Rod Wiper Seals for Hydraulic Applications (AY)
Brand: Parker HannifinParker's double-acting rod wiper seals for heavy to light-duty hydraulics applications feature knife-trimmed, beveled lips.
Parker’s AY profile, premium double-lip wiper is used in light to heavy-duty hydraulics.
When used in high pressure applications with the proper Parker rod seals, the AY profile complements the sealing system by providing an additional beveled sealing lip, yielding excellent film-breaking and the driest rod sealing available.
These dual acting features along with its space-saving single-gland configuration, enable it to be used by itself in low pressure applications as both the rod seal and the wiper.
Knife-trimmed sealing lips ensure the best possible film breaking.
Specifications
Brand
Color
- Tan, Aqua
Fluid Compatibility
- Petroleum-based Hydraulic Oil, Water, Depending on Material
Maximum Surface Speed (ft/min)
- 100 (0.5 m/sec)
Maximum Width
- Maximum
Maximum Working Temperature (°F)
- 275° F
Media
- Hydraulic
Minimum Working Temperature (°F)
- -35° F
Nominal Hardness
- 90A
Polymer Family
- TPU (Polyurethane)
Shoulder Diameter
- 0.370 to 10.135", 22.5 to 164.0 mm
Thermal Application (°F)
- Varies Depending on Material
- Dynamic sealing of hydraulic cylinders
