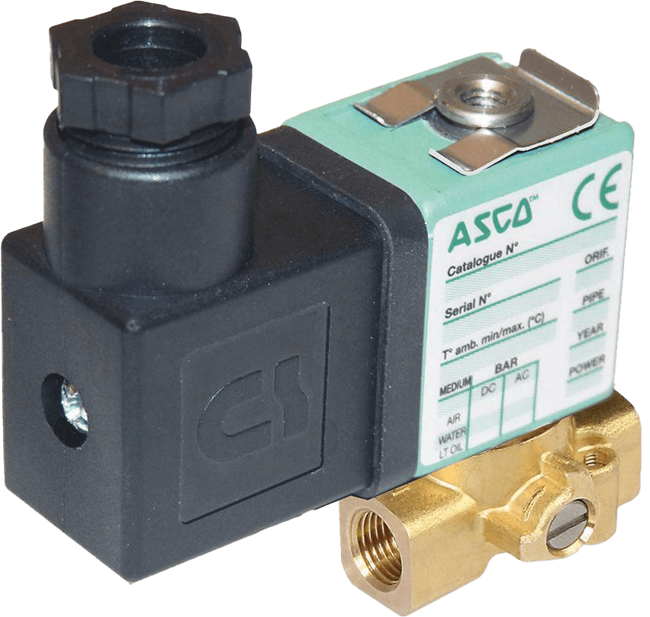

ASCO 356 Series Solenoid Valves
Brand: ASCOASCO 356 Series solenoid valves have a lightweight, compact design for the control of single-acting actuators or filling or draining cycles.
The brass or stainless steel constructions feature a wide range of elastomers and tight shutoff poppets for specialty service applications.
Features- Reliable, proven compact design for long service lifetimes
- Standard manual operator allows easy installation
- Mountable in any position
- Valves do not require a minimum operating pressure
- Wide range of flow and pressure ratings are available
- Quick disassembly of core tube for easy maintenance of internal parts
Specifications
Brand
Body Material
- Brass, Stainless Steel
Flow
- From .04 to .2 Kv
Function
- 3-Way - 3/2 Normally Closed, 3-Way - 3/2 Normally Open, 3-Way - 3/2 Universal
Maximum Differential, Maximum Operating Pressure
- 10.3-34.5 bar, 150-500 psig
Media
- Air, Inert Gas, Oxygen, Water, Light Oil
Pipe / Port Size
- 1/8, 1/4
Port Type
- G ISO 228 / 1-G BSPP
Valve Actuation
- Solenoid - Direct-Acting
Voltage
- 100 to 240 AC/DC Voltage Ranging, 12 DC, 24 DC, 48 DC/50, 50/60, 60
Documentation
Catalogs
- Catalog Solenoid Valves 3 2 Brass 356 Pdf pdf 723 KB
- European Catalog Direct Operated Solenoid Valves Accessorie Pdf pdf 1.3 MB
- European Catalog Direct Operated Solenoid Valves Complete A Pdf pdf 8.6 MB
- European Catalog Direct Operated Solenoid Valves Product In Pdf pdf 1.1 MB
- European Catalog Direct Pilot Operated Complete ASCO Pdf pdf 11.7 MB
