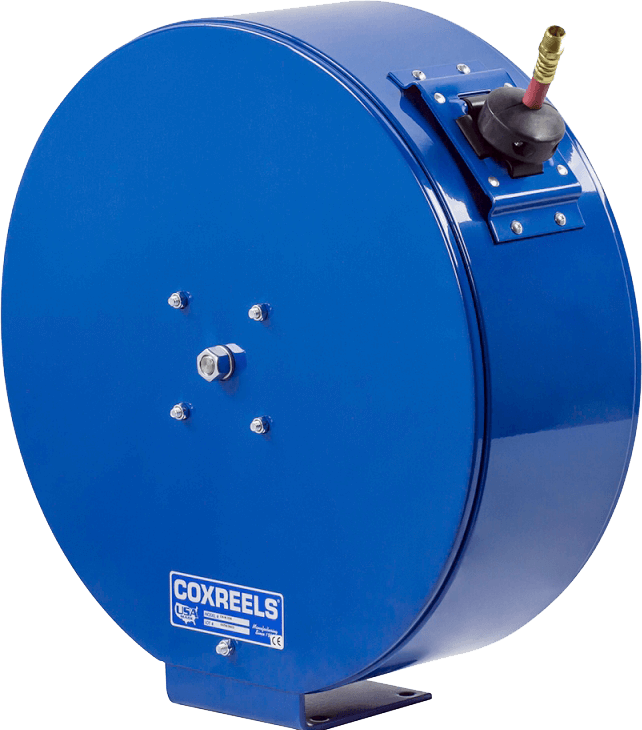

Spring Driven Reels | EN-Series

Brand: COXREELS®
Add Product to My Catalog

COXREELS® EN Series "Enclosed" spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose and the components inside.

 It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look.

The 3 piece casing is easy to assemble and disassemble for simple installation and maintenance.

Swivel
  • Machined from solid brass 90° full - NPT swivel inlet (Zinc plated steel swivel on HP models)
  • Swivel Seals: NITRILE

Design & Structure
  • Sturdy enclosed reel for aesthetic purposes & greater hose protection
  • Heavy gauge steel 3-piece casing with adjustable hose roller guide

Retract
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length
Features
  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide
  • SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hub™dual axle support system.
  • ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet mechanism, and lubricated precision bearings.

Specifications

Brand

PSI Maximum

  • 300
  • 3000
  • 5000

Inside Diameter

  • 1/4"
  • 3/8"
  • 1/2"

Hose Length

  • 25 ft
  • 35 ft
  • 50 ft
  • 60 ft

Optional

  • Hose
