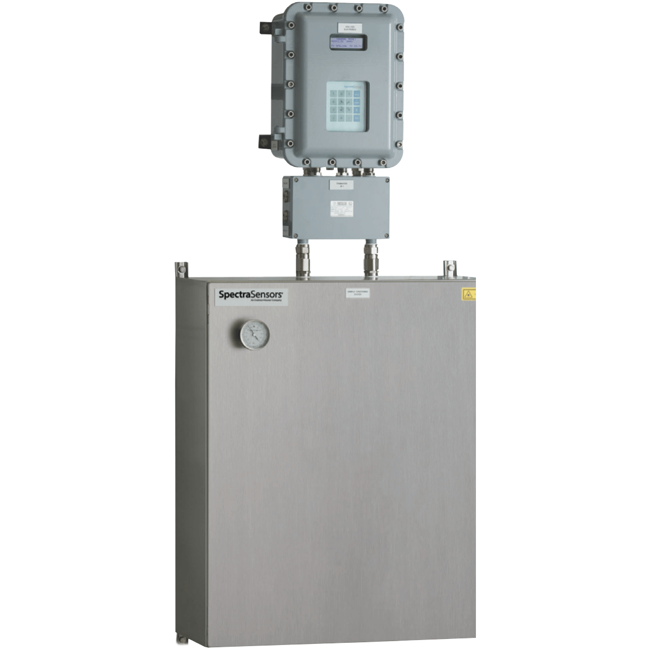

SS2100a TDLAS Gas Analyzer
Brand: SpectraSensors, IncSpectraSensors SS2100a Process Gas Analyzers are exceptionally reliable for measuring trace gas components using tunable diode laser absorption spectroscopy (TDLAS) technology.
TDLAS is a high resolution infrared technique that enables the measurement of specific gases with precision while avoiding interferences that are common with traditional infrared analyzers.
Features- Touch keypad interface, no tools required
- Simple design, trouble-free operation
- No routine maintenance required
- Field calibration not needed
- No drift or interference from contaminants
- Reliable in harsh environments
- Available for the following measurements: H2O (moisture) CO2 (carbon dioxide) H2S (hydrogen sulfide) NH3 (ammonia) C2H2 (acetylene)
- ATEX Certification
Specifications
Brand
Approvals & Certifications
- ATEX II 3 G Ex dc Ec NA Opis IIB + H₂ T3
- CE
- EMC Directive 2014/30/EU
Communication
- Ethernet
- Modbus Gould RTU or Daniel RTU or ASCII
- RS-485 Half-Duplex
Display
- LCD Display
Enclosure, Body Material
- 304 Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP55
- IP66
Input
- 120/240 Vac ± 10 %, 50/60 Hz, 60 W, Max.
Temperature Range
- -20° to 60° C (-4° to 140° F)
