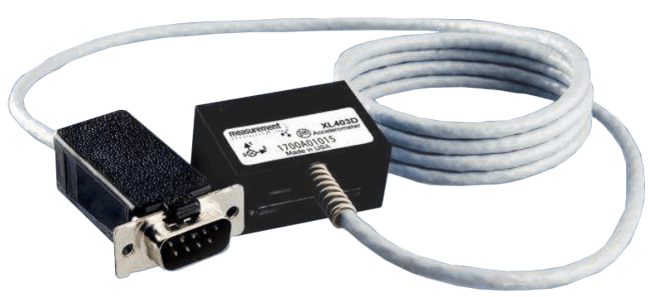

XL403A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe XL403A is ready when you are. In stock and ready to ship, you can be taking measurements in less time than with built-to-order accelerometers.
The small size and built-in power regulation allow the XL403A to fit where other accelerometers can’t. Choose bandwidth up to 800 Hz and range options of ±1 to ±15 g to measure accelerations on one, two or three axes. Tested over the -40°C to 85°C temperature range, the accelerometers have a nominal full scale output swing of ±2 V. The zero g output level is nominally 2.5 V. Precise values are available on the included calibration certificate.
Specifications
Accuracy
- ± 1° C (± 1.8° F) - Temperature Sensor
Connection Pin-Out
- 9-Pin
Electrical Connectors
- Male D-Shell Connector
Environmental Protection
- Hazardous Area
Frequency
- 0 to 800 Hz
Input
- 12 mA Typical - Input Current
- 8.5-36 V - Input Voltage - Operating
- -80-80 V - Input Voltage Limits
Measuring Range
- ± 1 to ± 15 G
Mounting
- Horizontal or Vertical
Non-Linearity
- 0.1 % of Full Scale Reading Typical
- 0.5 % of Full Scale Reading, Max.
Output
- 0.5 - 4.5 V - Output Voltage Swing
Output Noise
- 100 μg/√Hz Typical - Noise Density at 10 to 400 Hz
Resistance
- 5 kΩ - Self-test Pull-Up Resistor
Sensitivity
- ± 0.25 % - Transverse Sensitivity
- 400 mV/g - at 25° C (77° F)
- 6.45 mV/°C - Temperature Sensor
Shock
- -5,000 to 5,000 G
Temperature Effect
- 509 mV - 0° C Bias Level
Temperature Range
- -40° to 85° C (-40° to 185° F)
Thermal Drift
- ± 0.65 % Typical - Drift at 25° C (77° F)
- ± 3 %, Max.
Zero Offset
- 2.5 ± 0.010 V Typical - Zero G Bias Level at 25° C (77° F)
- 20 mg Typical - Zero G Bias Level Drift at 25° C (77° F)
