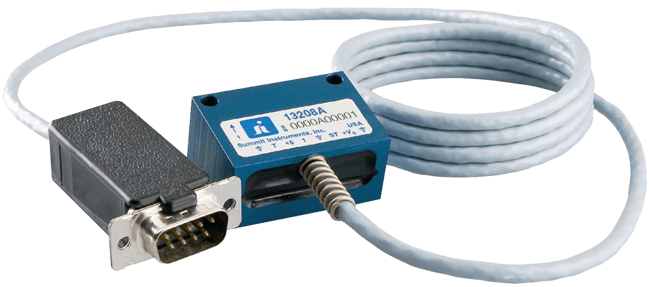

13208A, 23208A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe 13208A and 23208A accelerometers include a temperature sensor in their small, rugged package.
The small size and built-in power regulation allow the 13208A and 23208A to fit where other accelerometers can’t. Choose the bandwidth and range options best suited for your application to measure ±250g or ±500g accelerations on one or two axes. The high repeatability of the built-in temperature sensor allows precise compensation of temperature effects.
Alignment data provided on the included calibration certificate can be used to manually correct transverse sensitivity and alignment errors, or when extra precision is required, Option C002, offset compensation is available. Tested over the -40° to 85° C temperature range, the accelerometers have a nominal full scale output swing of ±2 volts.
The zero g output level is nominally +2.5 volts. Precise values are available on the included calibration certificate. Custom versions of the 13208A and 23208A can be provided for applications which require different range and/or bandwidth.
Specifications
Accuracy
- ± 2 % of Full Scale Reading - Non-Linearity
Constant Acceleration
- ± 250 to ± 500 G
Electrical Connectors
- 3 x AWG 24
Enclosure, Body Material
- Aluminum - Anodized
Excitation Voltage
- 8.5-36 V
Frequency
- 0 to 10,000 Hz
Input
- 15 mA
Input Impedance
- 10 kΩ
Mounting
- Screw Mount
Output
- ± 2 Vdc - FSO Voltage
- 0.50-4.50 V (Output Voltage Swing)
- 2,500 ± 10 mV - Zero Acceleration Output
Output Noise
- 2.8 mg/√Hz
Sensitivity
- ± 0.25 % - Transverse Sensitivity
- 4-8 mV/g
- 6.45 mV/°C
Shock
- ± 4,000 G - Shock Survival
Supply Voltage
- ± 80 V - Input Voltage
- 8.5-36 V - Input Voltage - Operating
Temperature Range
- -40° to 85° C (-40° to 185° F)
Vibration
- MIL-STD-704A
