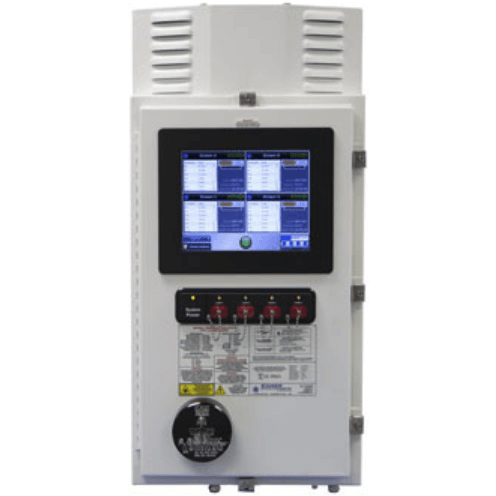

Optograf Gas Analyzer
Brand: SpectraSensors, IncThe Optograf™ is an industry leading turn-key laser-based analyzer that provides quantitative chemical composition measurements using Raman spectroscopy.
The design of the Optograf Gas Analyzer incorporates customer requirements for serviceability and hazard-area certification, as well as a compact footprint and minimal utilities consumption.
Features- Minimal sample conditioning required
- Compact, smaller than most wall-mount GCs
- Can replace up to 4 traditional analyzers with a single base unit and 4 probes
- Rugged with minimal utility requirements (electricity)
Specifications
Brand
Approvals & Certifications
- ATEX II 2/1 G Ex ia Op is IIA or IIB or IIB + H₂
- CSA (C,US) Ex ia IIB + H₂ T4, Class I Zone 2 AEx ia IIB + H₂ T4, Class I, Div. 1, Groups B, C, D T4
- IEC EX II 2/1 G Ex ia Op is IIA or IIB or IIB + H₂
Communication
- Modbus TCP/IP
- RS-485
Display
- Touch-Screen Color LCD Display
Enclosure, Body Material
- 316 Stainless Steel
- Painted Steel
Environmental Protection
- IP65
- IP66
- NEMA 4
Input
- 100-240 Vac, 50/60 Hz
Temperature Range
- -20° to 50° C (-4° to 122° F)
