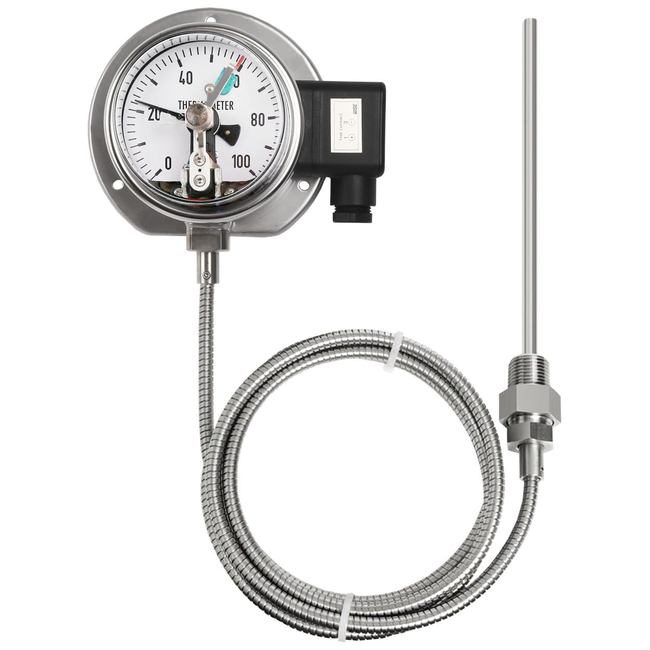

Euro Gauge Inductive Contact Type Temperature Gauge T501 (H), T502 (H/L), T503 (L), T504 (H/HH), T505 (L/LL)
Brand: Wise Control IncContact type temperature gauge is installed with electric contact actuated by pointer.
It provides the function which electrical circuit can be opened or closed by manual set point.
It is applicable where signal is required (Audible or visual alarm) for control of resistance or any other application with auxiliary relay and contact.
Specifications
Brand
Accuracy
- ± 2.0 % of Full Scale
Approvals & Certifications
- NEPSI Ex ia IIC T6 Ga
- Tamb = -20 ~ 56° C
Capillary
- Armored Tube: 7.5 / 5.5 mm, 304 Stainless Steel
- Capillary: 1.6 / 0.2 mm, 316 Stainless Steel
Case
- 304 Stainless Steel
Contacts
- With max. No. of Contact: 2 Sets per Gauge
- Maximum
- Contact Rating: AC 220 V, 0.25 A
- DC 100 V, 0.5 A
Cover
- Bayonet Typical
- 304 Stainless Steel
Dial
- White Aluminum with Black Graduations
Location of Stem & Mounting
- Bottom Connection, Surface, Case Mounting
Measuring System (SAMA Class ⅢB)
- Inert Gas: -200 ~ 700° C
- Organic Gas: 0° to 200° C
Nominal Diameter
- 100 & 160 mm
Options
- Special Accuracy, ± 1.0 % of Full Scale
Pointer
- Black Painted Aluminum Alloy
Stem
- 316 & 316L Stainless Steel
- 8.0, 10.0 & 12.0 mm
Stem, Process Connection
- 3/8", 1/2", 3/4" PT, NPT & PF
Window Material
- Polycarbonate: 100 & 160 mm
- Safety Glass: Only Available with Diameter 100 mm
Working Range
- Maximum
