Gems Cryogenic Solenoid Valve, D-Cryo Series

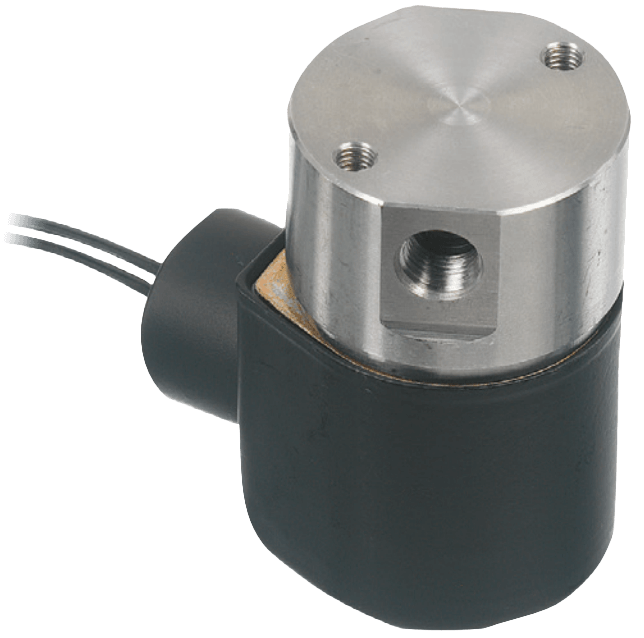

D-Cryo Series Cryogenic Solenoid Valve

Brand: Gems Sensors, Inc
Add Product to My Catalog

Gems Cryogenic Solenoid Valve, D-Cryo Series
The D-Cryo Series is a 2-way, high flow, miniature Cryogenic valve designed and built for service down to -196° C (-320° F).

Depending on your temperature requirements, the D-Cryo Series can be configured for liquid nitrogen (LN2), liquid carbon dioxide (LCO2), and other extreme temperature media.

PTFE-coated plungers, 316 Stainless Steel guide tubes and plunger springs, encapsulated coils, and PTFE or Rulon® seat seals produce a truly robust Cryogenic valve for applications requiring high cycle life and media temperature control.
Features
  • MOPD: 1000 PSI (69 Bar)
  • Cv Range: 0.040 to 0.770 (Kv Range: 0.034 to 0.655)
  • 15 Watts

Specifications

Brand

Applications

  • Environmental Chambers
  • Food Processing
  • Laser Surgical Equipment
  • Semiconductor Manufacturing Industry

Approvals & Certifications

  • RoHS

BSP Connection

  • 1/4"-19 BSPT Female
  • 1/8"-28 BSPT Female

Cable Material

  • PTFE - Liquid Carbon Dioxide
  • Silicone - Liquid Nitrogen

Electrical - Free Leads

  • 18 AWG Wire Leads

Electrical Connectors

  • Lead Wires

Enclosure Finish

  • Plunger: PTFE-Coated

Enclosure, Body Material

  • 303 Stainless Steel
  • Brass - Liquid Carbon Dioxide

Flow Rate

  • 0.040 to 0.770 Cv (0.034 to 0.655 Kv)

Materials of Construction

  • One-Piece Guide Assembly: 316 Stainless Steel

Maximum Opening Pressure Differential

  • psig: 40 to 1,000 (kPa: 276 to 6,900, bar: 2.7 to 69)

Media

  • Carbon Dioxide
  • Nitrogen

NPT Connection

  • 1/4"-18 NPT Female
  • Bottom Under-Seat Port: 1/8"-27 Female NPT

O-Ring Material

  • Fluorosilicone - Liquid Carbon Dioxide
  • PTFE - Liquid Carbon Dioxide
  • Variseal - Liquid Nitrogen

Orifice Size

  • 3/64" to 1/4" (1.19 to 6.35 mm)

Power

  • 15 W

Seat / Seal Material

  • PTFE - Liquid Carbon Dioxide
  • Rulon - Liquid Nitrogen
  • Silicone - Liquid Carbon Dioxide

Spring Material

  • 316 Stainless Steel

Supply Voltage

  • 110-240 Vac
  • 1-24 Vdc

UNF/UNC Connection

  • Bottom over / Under-Seat Port: #10-32 UNF Female for Liquid Nitrogen

  • Environmental Chambers
  • Food Processing
  • Laser Surgical Equipment
  • Semiconductor Manufacturing

Documentation

Data Sheets
