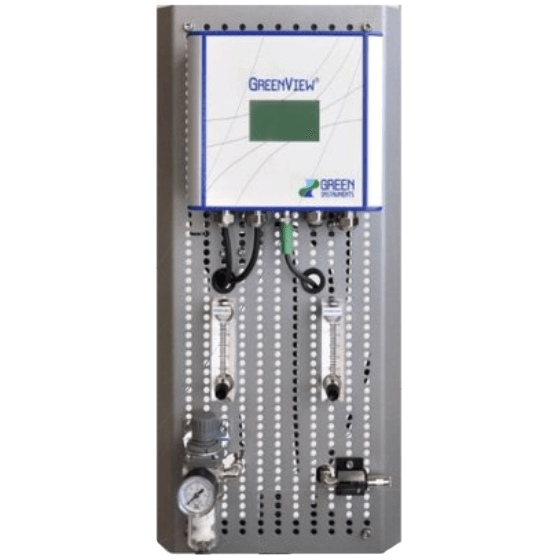

G3620a/G3620p Stack Gas Oxygen Analyzing System
Brand: Green Instruments A/SThe G3620 Stack Gas Oxygen Analyzing System provides data to help control the fuel-air ratio in the burner. The system is installed directly in the stack close to the boiler, which provides real-time, wet oxygen measurements under actual flue gas conditions. This means that the sample is analyzed in situ without being passed through vulnerable sampling lines.
Specifications
Brand
Ambient Temperature Range
- 0° to 70° C (32° to 158° F) - G36p
- -15° to 55° C (5° to 131° F) - G36a
Approvals & Certifications
- BV
- CE
- DNV
- LLOYD
Approvals & Certifications
- Air Quality: Instrument Air Quality According to ISO 8573-1: 2010 Class 4.4.3
BSP Connection
- 1/8" BSP Female
Consumption
- Air Quality: up to 5 L/minute
- Power: 40 VA Per Analyzer
Diameter
- Test Gas Inlet (Hose Outer Diameter): 0.236" (6 mm)
Display
- Digital Dsiplay: Touch Screen 71 x 39 mm
Environmental Protection
- IP55
- IP67
Flow Rate
- Calibration Air Flow, Ejector Air Flow at 1 bar (Vacuum 80 mmH₂O - Adjustable if More Suction is Needed): Approximately 2 L/minute
Measuring Range
- 0 to 21 % O₂
Mounting
- Panel Mounted - G36p
Output
- Output Signals: Active 4-20 mA
Power Supply
- 100-230 Vac at 50/60 Hz - G36a
- 24 Vdc - G36p
Relay Output
- Alarm Relays: 2 Relays, Volt Free, 24 Vac/dc, 5 A
Repeatability
- ± 0.1 % of the Measurement Range
Response Time
- 90 % of Full Scale in less than 45 seconds
Sensor, Probe Length
- Umbilical Cord: 10 ft (3 m) Length in 1.1" (28 mm) Nylon Conduit
Sensor, Probe Type
- Sensor Technology: Zirconia Typical Sensor
Supply Pressure
- Air Supply Inlet - psi: 145 (kPa: 1,000, bar: 10) - Max.
- Test Gas Inlet - psi: 28 (kPa: 200, bar: 2) - Max.
Temperature Range
- Sample Temperature: 0° to 500° C (32° to 932° F)
