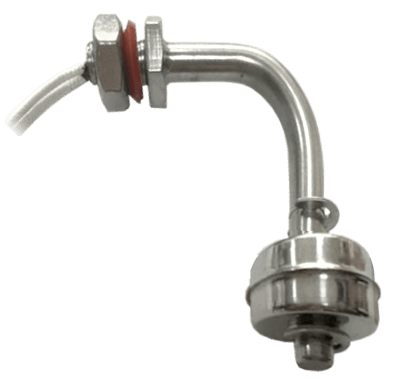

Kobold Magnetic Level Switch, MS06

MS06 Magnetic Level Switch

Brand: KOBOLD Instruments, Inc
Add Product to My Catalog

Magnetic level switches are used for the monitoring and control of liquid levels in vessels. Magnetic level switches are manufactured to customer specification.

An overview of types available with minimum lengths of measuring tube is set out on the following pages. Please refer to this overview when placing your order.
Features
  • Simple installation
  • Long electrical service life due to sealed contacts
  • High-degree of operational reliability with air gap between measuring tube and floats
  • Several levels can be monitored with one float
  • Open/close function or changeover contact available

Specifications

Brand

Approvals & Certifications

  • ATEX
  • Ex

Bore Size

  • 0.55" (14 mm)

BSP Connection

  • G 1-1/2"
  • G 2"
  • G 3/8"

Cable Length

  • 3.3 ft (1 m)

Cable Material

  • PVC
  • Silicone

Electrical Connectors

  • M16 x 1.5

Electrical Contacts

  • Changeover Contact
  • Normally Closed
  • Normally Open

Electrical Rating

  • 230 Vac/dc / 1 A / 60 VA - N/O, N/C & Changeover Contact

Enclosure, Body Material

  • Aluminum
  • Polyamide

Environmental Protection

  • IP65

Flange Size - 1-1/2” (DN 40)

  • 1-1/2' (DN 40) - 150#
  • 1-1/2" (DN 40) - PN 16

Flange Size - 2-1/2” (DN 65)

  • 2-1/2" (DN 65) - 150#
  • 2-1/2" (DN 65) - PN 16

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150#
  • 2" (DN 50) - PN 16

Flange Size - 3-1/2” (DN 90)

  • 3-1/2" (DN 90) - 150#

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150#
  • 3" (DN 80) - PN 16

Flange Size - 4” (DN 100)

  • 4' (DN 100) - 150#
  • 4" (DN 100) - PN 16

Flange Size - 5” (DN 125)

  • 5" (DN 125) - PN 16

Hysteresis

  • 0.197" (5 mm)

Length

  • Maximum

Materials of Construction

  • 316 Stainless Steel
  • Polypropylene

Maximum System Pressure

  • psi: 1,450 (kPa: 10,000, bar: 100) at 20° C (68° F)

Mounting Position

  • Lateral ± 30°

Nominal Pressure

  • psi: 1,450 (kPa: 10,000, bar: 100) at 20° C (68° F)

NPT Connection

  • 1-1/2" NPT Male
  • 2" NPT Male

Screw Material

  • 316 Stainless Steel
  • Brass
  • PVC

Sensor, Probe Style

  • Float - Cylinder Solid Material

Switch Type

  • Changeover Contact
  • Normally Open & Normally Closed

Temperature Range

  • Maximum

Documentation

Data Sheets

Approvals
