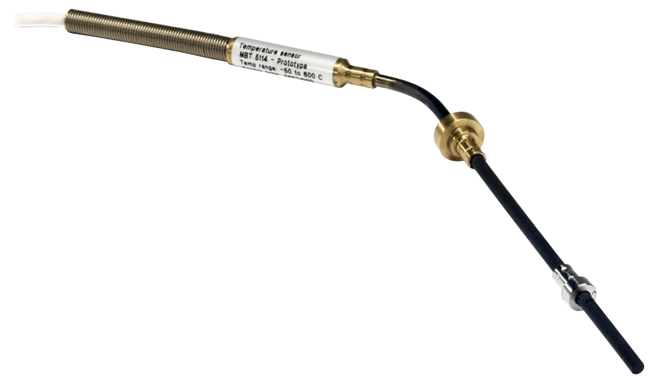

MBT 5114 Exhaust Gas Temperature Sensor
Brand: DanfossMBT 5114 is a series of exhaust gas temperature sensors used for performance optimization and environmental impact control of large 4 stroke engines.
By utilizing RTD sensing elements the MBT 5114 provides a modern and total cost attractive alternative to the thermo couple exhaust gas sensors.
Features- 0° to 600° C (32° to 1,112° F) media temperature {peak 700° C (1,292° F)}
- Fixed or adjustable insertion length
- 1 or 2 Pt 1,000 elements
- No need for special compensation cable
- Less noise sensitive
- No cold junction compensation
- Resistant to moisture (works from day one)
- No polarity on the cable (easy to install)
- Linear signal
Specifications
Brand
Ambient Temperature Range
- Maximum
Applications
- For Measuring Exhaust Gas in Stationary & Marine (Diesel & Gas Engines, Turbines, Compressors)
Approvals & Certifications
- ABS - American Bureau Shipping
- BV
- CCS
- DNV
- GL
- KRS
- LRS
- NKK
- RINA
BSP Connection
- G 1/2" A Male
Cable Material
- FEP
- PFA
- Polyolefin
Connection Style
- Ajustable Fitting
- Clamp
Diameter
- 0.18" to 0.23" (4.5 to 6 mm) - Protection Tube
Electrical Connectors
- ITT Cannon 4-Pins
- Jager 4-Pins, Straight
Environmental Protection
- IP65 According to IEC 60529
Length
- 0.98 to 32.8 ft (0.3 to 10 metres) - Flexible Tube
Materials of Construction
- 316Ti Stainless Steel, 1.4542 - Protection Tube
NPT Connection
- 1/4"-18 Male NPT
Process Temperature
- 0° to 700° C (32° to 1,292° F)
Response Time
- 1 to 3.5 seconds - Indicative Response Time of Water
- 15 to 50 seconds - Indicative Response Time of Air
Sensor / Probe Connection
- 2-Wire
- 4-Wire
Sensor / Probe Type
- Pt1000
Shock
- 100 G, 6 ms
Temperature Range
- -50° to 700° C (-58° to 1,292° F)
- 700° C (1,292° F) - Max.
Tolerance
- EN 60751 Class B
Vibration
- 4 G Sine Function at 2 to 100 Hz, Measured According to IEC 60068-2-6
For measuring exhaust gas in stationary and marine:
- Diesel and gas engines
- Turbines
- Compressor
