MS4525 Analog Pressure Sensor Module
Brand: American Sensor Technologies Inc

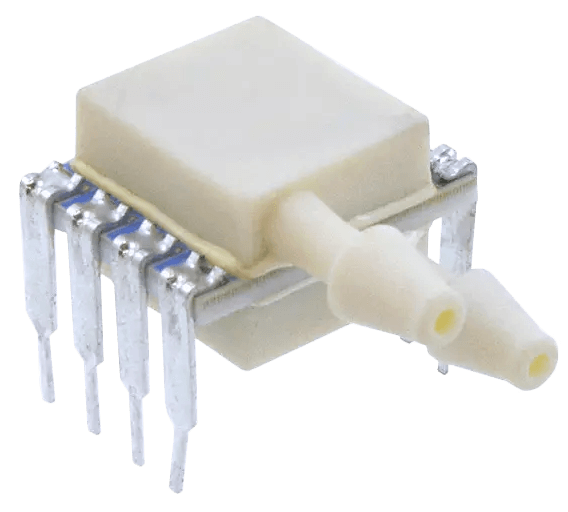

The MS4525 is a small, ceramic based, PCB mounted pressure transducer from Measurement Specialties.
The transducer is built using Measurement Specialties’ proprietary UltraStable™ process and the latest CMOS sensor conditioning circuitry to create a low cost, high performance transducer designed to meet the strictest requirements from OEM customers.
The MS4525 is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0% over the compensated range. The sensor operates from single supply of either 3.3 or 5.0Vdc and requires a single external component for proper operation.
The rugged ceramic transducer is available in side port, top port, and manifold mount and can measure absolute, gauge, differential, or compound pressure from 1 to 150psi. The 1/8” barbed pressure ports mate securely with 3/32” ID tubing.
Features- PSI Pressure Ranges
- PCB Mountable
- High Level Analog Output
- Barbed Pressure Ports
Specifications
Accuracy
- ± 0.25 % of Span
- Total Error Band: < ± 2.0 % of Span
Ambient Temperature Range
- 25° C (77° F)
Approvals & Certifications
- RoHS
Burst Pressure
- psi: 150 (kPa, 1,034, bar: 10.34)
Compensated Temperature
- -10° to 85° C (14° to 185° F)
Humidity
- 95 % Non-Condensing
Input
- 3 mA
Load Impedance
- 10 kΩ
Media
- Non-Corrosive Dry Gases Compatible with Ceramic, Silicon, Borosilicate Glass, PPS, RTV, Gold, Aluminum & Epoxy
Mounting
- PC Board Mounting
Operating Temperature - Sensor
- -25° to 105° C (13° to 221° F)
Output
- 3 mA
Overpressure & Static Pressure Limits
- psi: 300 (kPa: 2,000, bar: 20)
Pressure Cycles
- > 10-Years, 70° C, 10 Million Pressure Cycles, 120 % of Full Scale Pressure
Pressure Range
- inH₂O: 1 to 150
- psi: 1 to 150 (kPa: 7 to 1,000, bar: 0.07 to 10)
Pressure Type
- Absolute
- Compound
- Differential
- Gauge
- Vacuum
Response Time
- 1 ms
Shock
- MIL-STD-202F, Method 213B, Condition C, 3 Drops
Storage Temperature
- -40° to 125° C (-40° to 257° F)
Supply Voltage
- 2.7-5.5 Vdc
- 3.3 Vdc
Tube Connection
- 1/8" Barbed Pressure Ports Mate Securely with 3/32" I.D. Tubing
Vibration
- 1-Hour Each Axis
Wetted Materials
- Aluminum
- Borosilicate Glass
- Ceramic
- Epoxy
- Gold
- PPS
- RTV
- Silicone
- Factory Automation
- Altitude and Airspeed Measurements
- Medical Instruments
- Leak Detection
