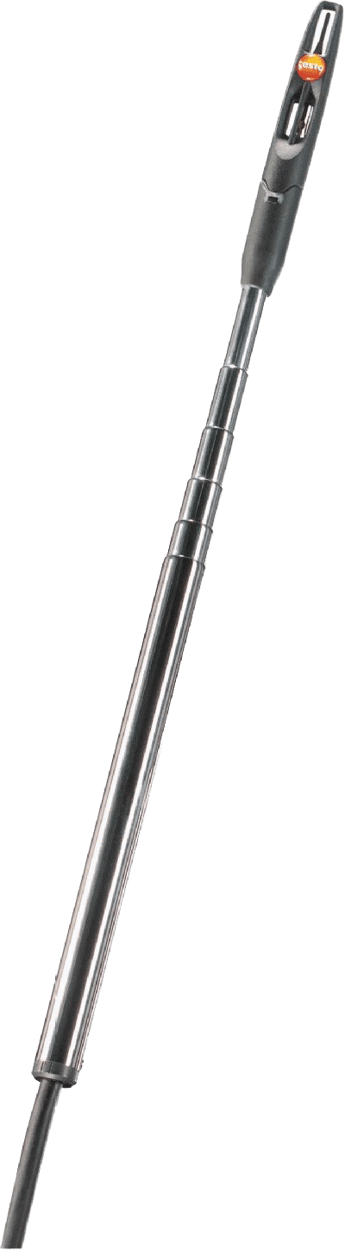

Hot Wire Probe (Ø 12 mm) - For Flow, Temperature and Humidity
Brand: TestoUse the hot wire probe (thermal anemometer) to determine flow velocity and volume flow in ventilation ducts or at ventilation outlets.
It is particularly suitable for low and medium flow velocities up to +20 m/s. The probe can also measure temperature and humidity simultaneously.
The hot wire probe is equipped with a telescope, which can be extended to a maximum length of 745 mm.
Features- 3 functions in 1 probe: measurement of flow, temperature and humidity
- Probe head diameter: 12 mm – also suitable for measurements in ventilation ducts
- With telescope (can be extended to 745 mm)
- Flow measuring range: 0 to +20 m/s
Specifications
Brand
Delivery Scope
- Hot Wire Probe (Ø 12 mm) with Telescope (Can be Extended to 745 mm) including Fixed Cable 0.8 m
Temperature - NTC
- Measuring Range: -20° to +70° C
- Accuracy: ± 0.3° C
Humidity - Capacitive
- Measuring Range: 0 to +100 % RH
- Accuracy: ± 2 % RH (+2 to +98 % RH)
Velocity - Hot Wire
- Measuring Range: 0 to +20 m/s
- Accuracy: ± (0.03 m/s + 4 % of mv)
Cable Length
- 0.8 m
Length Telescope
- 745 mm
Probe Head Diameter
- 12 mm
