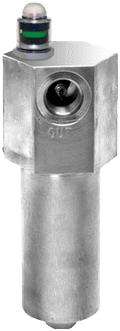

NF30 Top-Ported Filters
Brand: Schroeder Industries
Features
- Top-ported pressure filter
- All aluminum assembly
- Available with non-bypass option with high collapse element
- Offered in pipe, SAE straight thread and ISO 228 porting
- Same day shipment model available
Specifications
Brand
Flow Rating
- Up to 20 gpm (75 L/min) for 150 SUS (32 cSt) fluids
Maximum Operating Pressure
- 3000 psi
Minimum Yield Pressure
- 10,000 psi
Rated Fatigue Pressure
- 2400 psi
Temperature Range
- -20° to 225° F
- -29° to 107° C
Bypass Setting
- Cracking: 40 psi
- Full Flow: 85 psi
- Non-bypassing model has a blocked bypass.
Materials
- Aluminum
Element Change Clearance
- 4.50"
- Hydraulic Filtration
