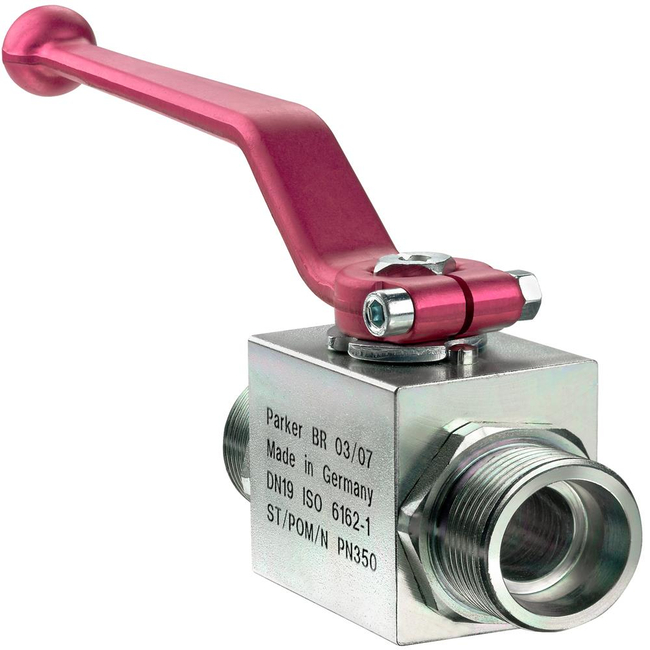

Parker 2-Way Ball Valves
Brand: Parker Hannifin2/2-way ball valves interrupt or facilitate the medium flow. These valves, available worldwide, can be optionally equipped with a locking device to avoid unauthorized opening and shut-off; they support the safety of the entire system.
Ball valves with a detent position or fastening bore are also part of the programme.
Features- Excellent sealing and easy operation extend the safety of the entire hydraulic system, of which the 3/3-way ball valves form a part.
- 2/2-way ball valves guarantee the safety of the whole hydraulic unit because of their consistent quality.
- 2/2-way ball valves are available in steel and stainless steel; there is a broad range of seals e.g. NBR and POM. This variety of material helps to meet customer requirements perfectly.
- The surface offers very high corrosion protection, which of course extends the life-cycle of the product.
Specifications
Brand
Applications
Connection 1 Style
- 24° Cone End, BSPP Female Thread (ISO 1179-1), Female NPT Thread (SAE 476)
Connection 1 Tube O.D. (mm)
- 06 to 42
Connection 2 Style
- 24° Cone End, BSPP Female Thread (ISO 1179-1), Female NPT Thread (SAE 476)
Connection 2 Tube O.D. (mm)
- 06 to 42
Connection Size
- G 1/8 to G 11/2, 1/8"-27 NPT to 1-1/2-11.5 NPT
Connection Size 2
- G 1/8 to G 11/2, 1/8"-27 NPT to 1-1/2-11.5 NPT
Connection Type
- Bite Typical, Soft Seal Bite Typical
Diameter Nominal (DN)
- 4 to 50
Industry Standards
- DIN ISO 8434
Material
- Steel DIN 50938-FE// A/T4, Steel DIN 50938-FE// A/T5, Steel DIN 50938-FE// A/T6, Steel, Zinc-Plated, Cr(VI)-free, Stainless Steel
Maximum Working Pressure (bar)
- 315-500
Maximum Working Pressure (Mpa)
- 31.5-47.6
Maximum Working Pressure (psi)
- 4569-7252
Maximum Working Temperature (°C)
- +250° Steel, +400° Stainless Steel
Maximum Working Temperature (°F)
- +482° Steel, +752° F Stainless Steel
Minimum Working Temperature (°C)
- -40° C Steel, -60° C Stainless Steel
Minimum Working Temperature (°F)
- -40° Steel, -76° F Stainless Steel
Pre-installed Optional Accessories
- na, Pre-Assembled with Nut & EO-PSR Cutting Ring, Pre-Assembled with EO-2 Functional Nut, Pre-Assembled with Nut & EO-DPR Cutting Ring
Shape
- 2-Way Ball Valve, 2-Way BSPP Ball Valve, 2-Way NPT Ball Valve
Tube O.D. (mm)
- 6-42
- Suitable for General Hydraulic Applications
- Agriculture Equipment
- Automotive Process
- Chemical Transfer
- Construction Equipment
- Fuel Transfer
- Hydraulic
- Manufacturing Equipment
- Marine
- Material Handling
- Mobile Equipment
- Oilfield
- Packaging
- Transportation
- Markets:
- Agriculture
- Mobile hydraulics
- Air & Gas Compressors
- Offshore and Shipbuilding
- Construction Machinery
- Railway Industry
- Trucks
- Natural Gas
Documentation
Certifications & Approvals
- ABS Certificate HN 2096093 X0001 for Manufacturing Assessment pdf 387 KB
- Bureau Veritas Certificate for Ermeto Original product range pdf 489 KB
- CSS China Classification Society Approval pdf 518 KB
- Det Norske Veritas P 14319 for Ball Valves pdf 1.3 MB
- Russian Maritime Register of Shipping Certificate for fittings pdf 591 KB
