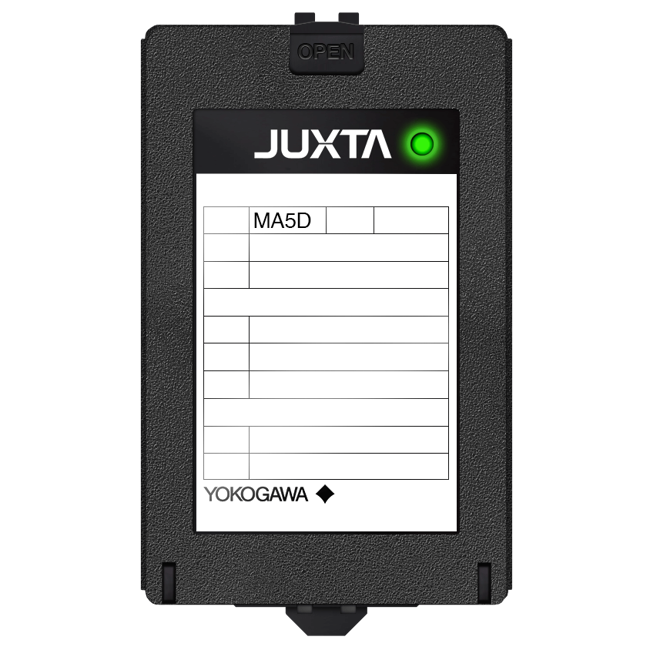

MA5D Dual Output Free Range Type Distributor
Brand: Yokogawa Electric Corporation
The MA5D is a plug-in type distributor that is used in combination with a two-wire type transmitter to convert the transmitter’s 4-20 mA DC signals into isolated DC current or DC voltage signals.
Features- Output range setting, selection of square root extractor and Breakpoint Linearization (breakpoint setting), I/O adjustment, I/O monitoring, and loop back test can be made using the optional Parameter Setting Tool (VJ77) or Handy Terminal (JHT200)
- The operation indicating lamp shows the operation status, abnormalities in a setting etc
- I/O adjustment can be made using the switches on the front panel of the MA5D without a setting tool such as Handy Terminal
- Supports BARD-800 and -810
Specifications
Accuracy
- ± 0.05 % - Input & Output Accuracy
- ± 0.1 % of Span
- ± 1 % of Span - When the Input is 2 % or Less
Approvals & Certifications
- UL 94 V-0, UL 94 V-1
Consumption
- 3.4 W at 110 Vdc - Power Consumption
- 3.5 W at 24 Vdc - Power Consumption
- 6.5 VA at 100 Vac - Power Consumption
- 8.7 VA at 200 Vac - Power Consumption
Electrical Connectors
- M3.5 Screw Terminal
- Plug-In Connector
Enclosure, Body Material
- ABS Resin
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity
Input
- 40 mA DC - Max.
Input Signal
- 4-20 mA DC - Signal from Transmitter
Insulation Resistance
- 100 MΩ at 500 Vdc between Input, Output, Power Supply, & Grounding Terminals Mutually
Linearization
- -6 to 106 % - Allowable Setting Range of Breakpoint (Both Input & Output)
- Breakpoint: up to 32-Points
Materials of Construction
- ABS Resin & Polycarbonate Resin (Black), UL 94 V-0
- ABS Resin (Black), UL 94 V-0
- Modified Polyphenylene Oxide Resin, Including Glass Fiber (Black), UL 94 V-1 - Socket
- PBT Resin, Including Glass Fiber (Black), UL 94 V-0
Mounting
- DIN Rail Mounting
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- ± 10 Vdc
- ± 100 mVdc
- 0-20 mA DC
- 15 V/Max.
- 7 V/Max.
Power Supply
- 100-240 Vac/dc (-15 %, 20 %) 50/60 Hz
- 15-40 Vdc (± 20 %)
- 25.25 ± 0.25 Vdc (Provided with a Current Limiter to Keep the Current between 25 & 35 mA) - Transmitter Power Supply
Power Supply Effect
- ± 0.1 % of Span or Less for the Fluctuation within the Operating Range of Each Power Supply Voltage Specification
Resistance
- 10 kΩ or more for ± 10 Vdc - Allowable Load Resistance for Voltage Output
- 2 kΩ or more for ± 5 Vdc - Allowable Load Resistance for Voltage Output
- 250 kΩ or more for ± 100 mVdc - Allowable Load Resistance for Voltage Output
- 250 ohms - Input Resistance
Response Time
- 150 ms, 63 % Response (10 to 90 %)
Span & Zero Adjustments
- ± 1 % of Span or More - Input Adjustment
- ± 5 % of Span or More - Output Adjustment
Supply Voltage
- 1,000 Vac for 1 Minute between Output-1 & Output-2 Terminals - Withstand Voltage
- 2,000 Vac for 1 Minute between Input, Output, Power Supply & Grounding Terminals Mutually - Withstand Voltage
Temperature Effect
- ± 0.15 % of Span or Less for a Temperature Change of 10° C (18° F) - Ambient Temperature Effect
