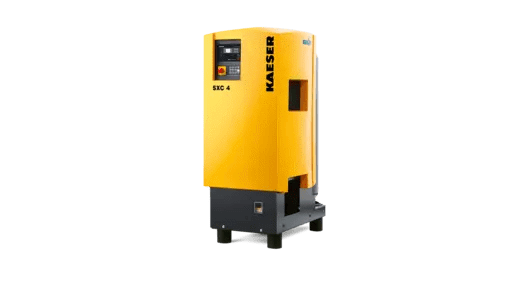

SXC Compact Series Standard Compressed Air System
Brand: Kaeser CompressorsCompressed air stations from the SXC series have been especially designed by KAESER for trades and crafts applications.
Featuring a footprint of just 0.62 m², they combine all of the components required for a compressed air supply beneath a single, durable polyethylene enclosure: a rotary screw compressor with the SIGMA PROFILE, a refrigeration dryer and an air receiver.
Features- Plug and play
Our all-in-one compressed air systems require minimal effort when it comes to piping and installation. Simply connect the station to a power supply and your compressed air network and that’s it – you’re ready to go! - Protected from corrosion damage
Thanks to the integrated refrigeration dryer, SXC systems deliver high-quality compressed air that protects your tools and equipment from corrosion damage. - Simple maintenance
All maintenance points are easily accessible by lifting off the lightweight, removable enclosure constructed from rotomoulded polyethylene. The electronic condensate drain can be inspected via a grille. Maintenance is simple and effective.
Specifications
Brand
Flow Rate
- 0.26 to 0.80 m³/min
Maximum Gague Pressure
- 8 bar, 11 bar or 15 bar
Drive Motor Rated Power
- 2.2 kW
- 3.0 kW
- 4.0 kW
- 5.5 kW
Power Consumption
- Refrigeration Dryer: 0.18 kW, 0.28 kW
Pressure Dew Point
- 3° C
